Carpa Arcum para una exposición de coches

Car Show Le Mans Rally Sports Event Tent Supplier

Acerca del proyecto

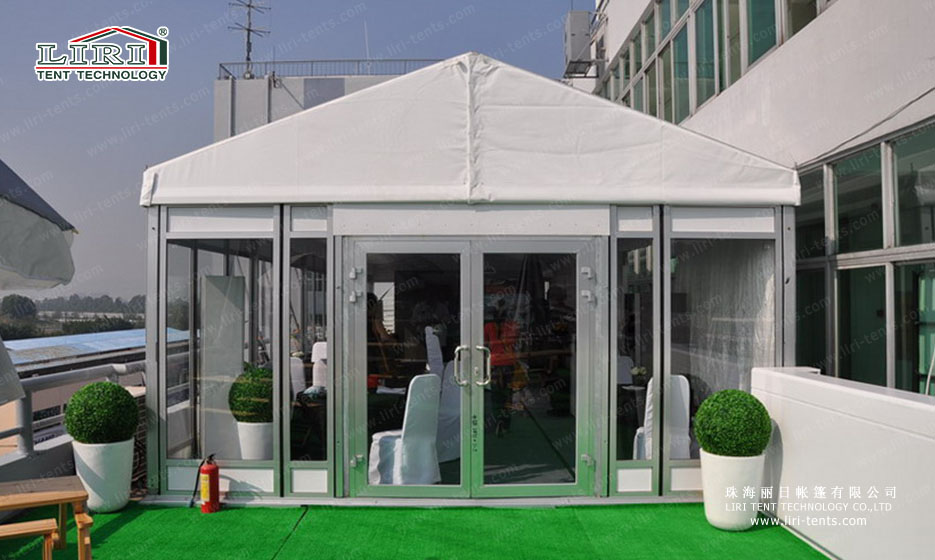

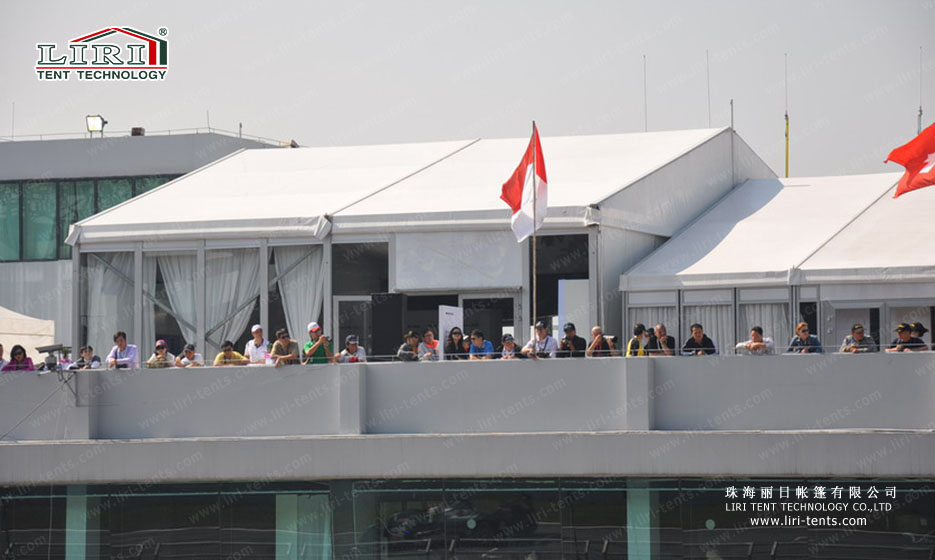

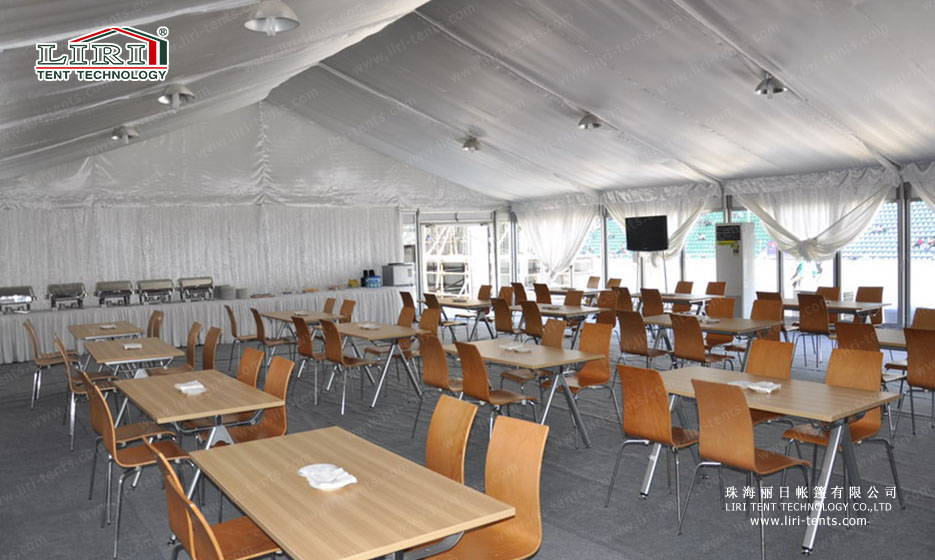

Liri Tent as the appointed Arcum tent supplier for most sports events in China surely we won’t miss this great event. We provide tents for the ticket area, rest area, car showroom, etc, protecting the athletes and audiences from wind, rain and UV.

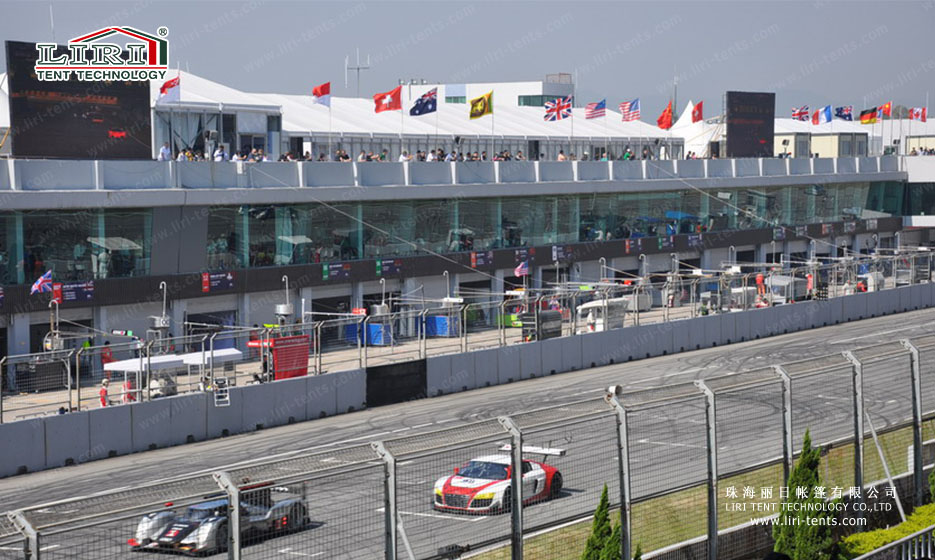

After years’ negotiation, one of the world Top 3 big car racing, Le Mans Race will be held in Zhuhai. Intercontinental Le Mans Rally 2010 was held in Zhuhai International Circuit On October 7th, 2010. Fans would be able to witness a tense and exciting rally in Zhuhai.

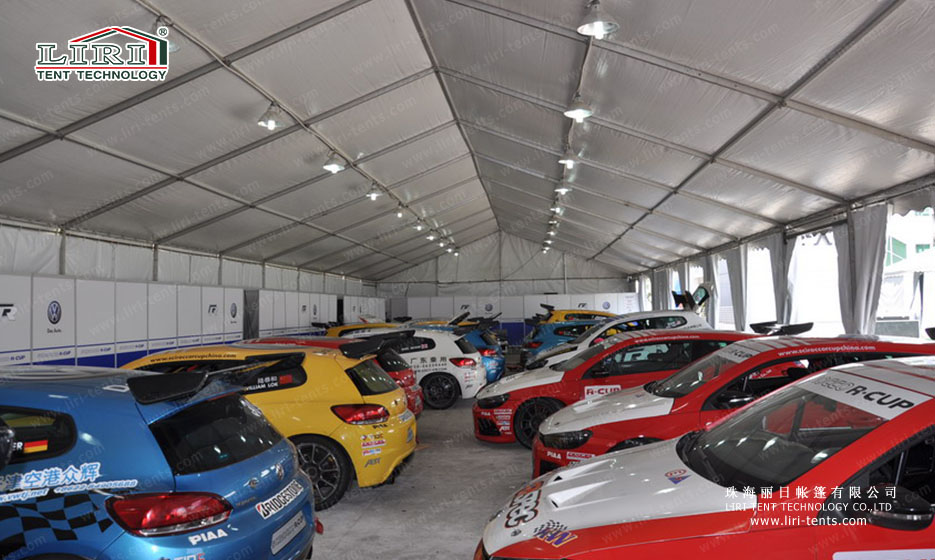

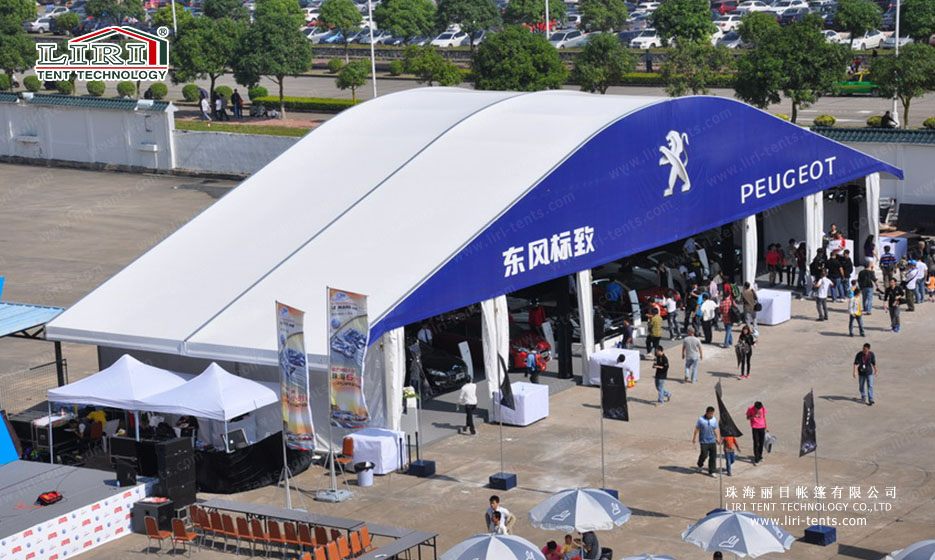

The Peugeot car showroom is built by Liri Tent. In 2011, Liri Tent cooperated with Peugeot again and provided Peugeot with unique design arcum car show tent on the basis of the previous experiences. The Arcum tent for Peugeot temporary showroom looks beautiful and attractive. The car show tent becomes the central landmark and highlight of the Intercontinental Le Mans 6 Hours in Zhuhai and fully displays the distinguished architecture design.

Especificaciones de la serie de carpas para eventos deportivos
Ancho de vanoAltura del aleroAltura de la crestaDistancia entre módulosPerfil principal
15 m
3.92m5.4m5 m300 x 120 x 5 mm (4 canales)
20 m3.92m6,3 m5 m300 x 120 x 5 mm (4 canales)
25 m3.92m7.15m
5 m300 x 120 x 5 mm (4 canales)
30 m3.92m7.87m5 m300 x 120 x 5 mm (4 canales)
40 m3.92m9.6m5 m300 x 120 x 5 mm (4 canales)
Características

Perfiles de la estructura: aluminio extruido 6061/T6 (15HW) de alta resistencia

Revestimiento de tejido: tejido de poliéster de alta calidad con doble recubrimiento de PVC; impermeable 100%; ignífugo según las normas DIN 4102 B1, M2 y CFM; resistente a los rayos UV, resistente al desgarro, con capacidad de autolimpieza, etc.

Conectores: acero resistente galvanizado en caliente

Rango de temperatura admisible: de -30 °C a +70 °C

Resistencia al viento: máx. 100 km/h

Carga de nieve: 75 kg/m² (la nieve no se acumula con un techo de gran pendiente)

Fácil de montar y desmontar

Sin postes interiores, 100 % del espacio interior disponible
