Carpa de tres pisos
- Datos generales
Multi-level Tent Structures

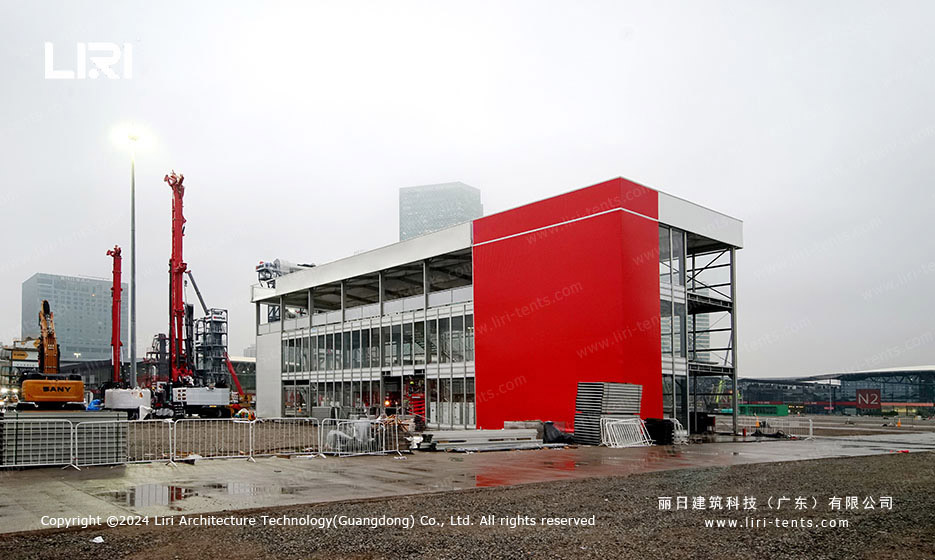

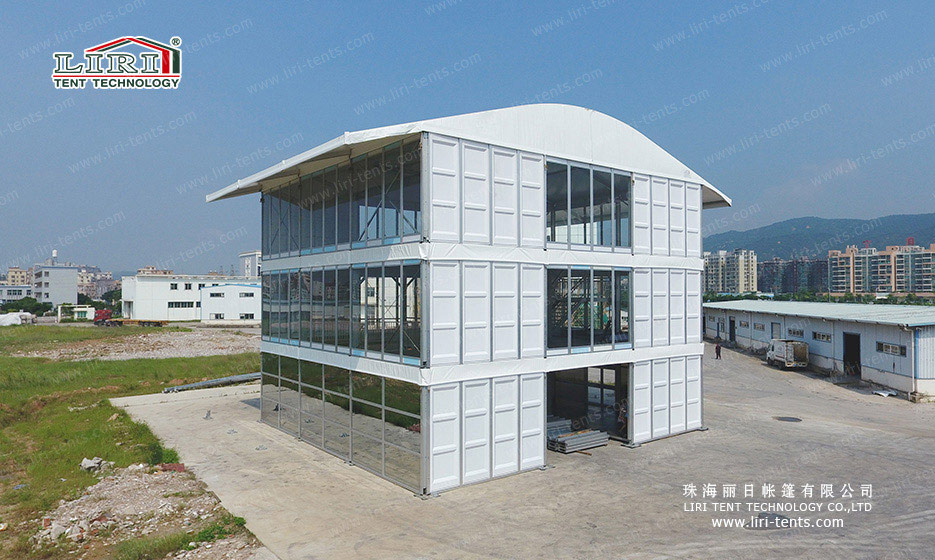

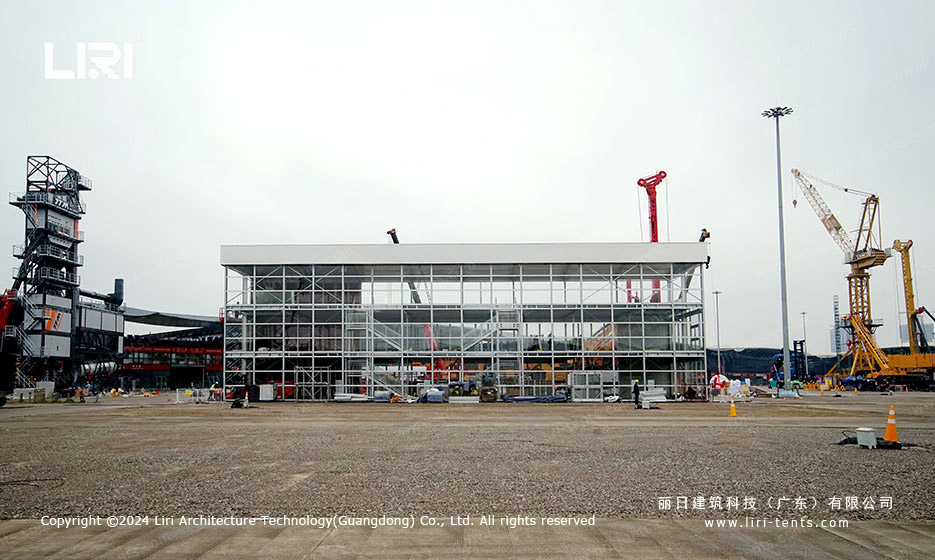

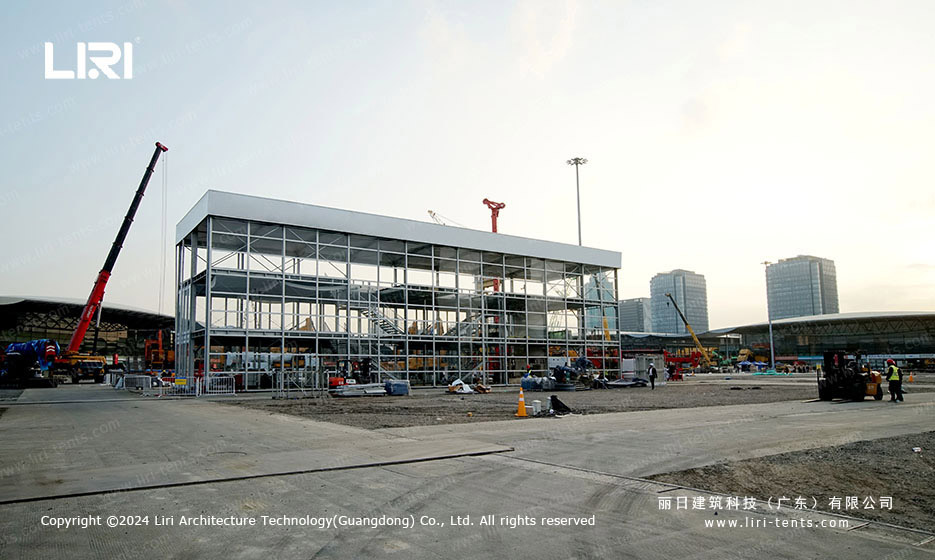

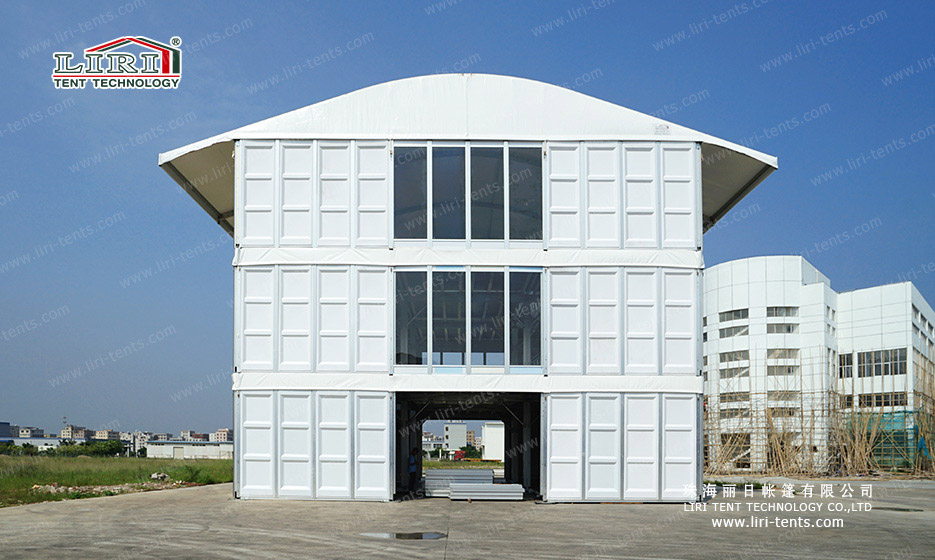

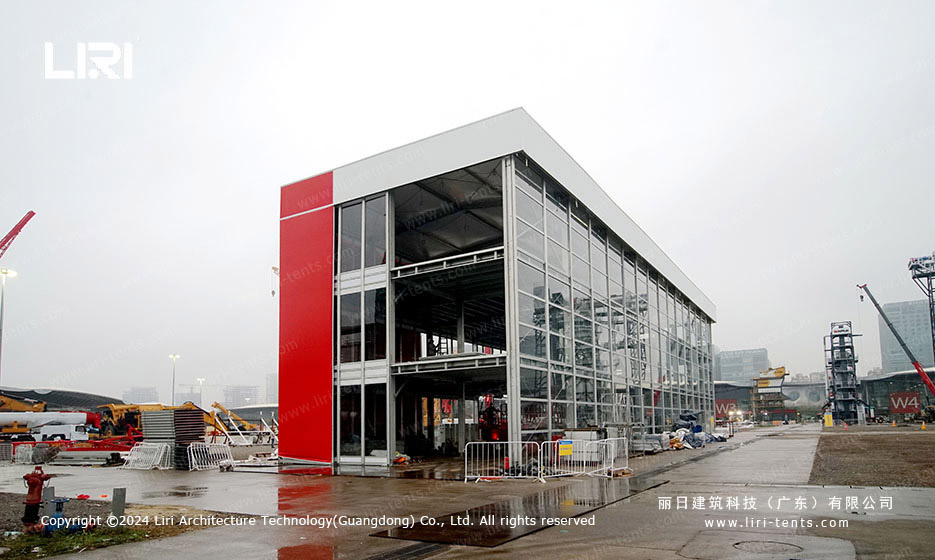

La carpa de tres pisos supone un nuevo avance en el sector de la construcción modular y móvil, otro gran logro tras el sistema modular de carpas de dos pisos.
Triple decker tent is made of a high-strength aluminum alloy as the framework. Cassette wooden floor aluminum edged with alloy frame composite. Two optional height include 3.3m and 4m for each floor, internal height up to 12m.

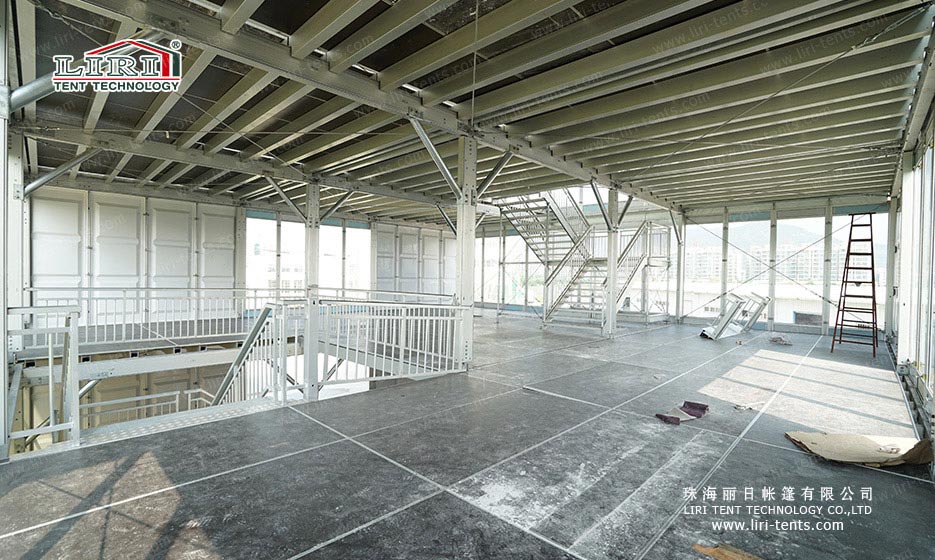

All three floor is the modular structure. 5m per section, clear span width from 3m to 80m. We offer you an unimaginable space solution. More flexible, you can remove the first and second frame and floor and used as single-story tents or double floor tents. Quickly installation, zero residual material after dismantle, 100% reuse, green.
You can customize the three-story tent according to different demands, divided into the different functional area. Decorated with different accessories, like solid walls, floors, mantle trim, internal or outer stairs, etc. You can equip the three-story tent with a balcony to provide outdoor extra space, to achieve a broader view.
- Especificaciones del producto
Ancho de vano Height of first floor Height of second floor Height of third floor Altura del alero Top Height Perfil principal 15 m 3,35 m 3,35 m 3,3 m 10 m 12,5 m 300 x 120 x 5 mm (4 canales) 15 m 4 m 4 m 3.8m 11.8m 14.3m 300 x 120 x 5 mm (4 canales) 20 m 3,35 m 3,35 m 3,3 m 10 m 13.3m 300 x 120 x 5 mm (4 canales) 20 m 4 m 4 m 3.8m 11.8m 15.1m 300 x 120 x 5 mm (4 canales) 25 m 3,35 m 3,35 m 3,3 m 10 m 14.1m 350 x 120 x 5 mm (4 canales) 25 m 4 m 4 m 3.8m 11.8m 16 m 350 x 120 x 5 mm (4 canales) 30 m 3,35 m 3,35 m 3,3 m 10 m 14.9m 350 x 120 x 5 mm (4 canales) 30 m 4 m 4 m 3.8m 11.8m 16.4m 350 x 120 x 5 mm (4 canales) - Dibujo en 3D
