Carpa para eventos deportivos destinada a una carrera de maratón

Outdoor Event Tent for Sporting Events

Acerca del proyecto

It can be frequent to find a familiar figure at marathon races in all parts of the country: Liri Architecture Technology (Guangdong) Co., Ltd. As an enterprise with experience building event tents for nearly 30 years, LIRI has already become an important supporter of nationwide sports, such as marathons.

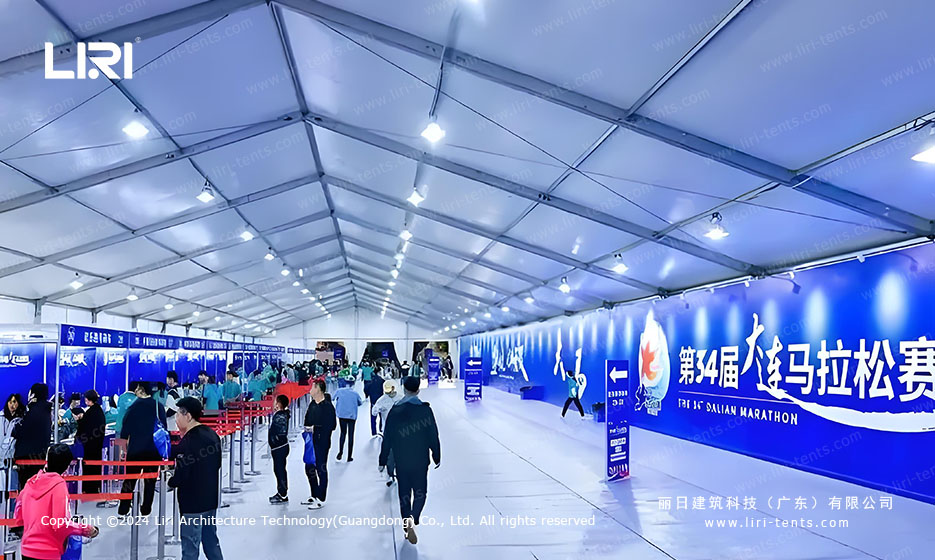

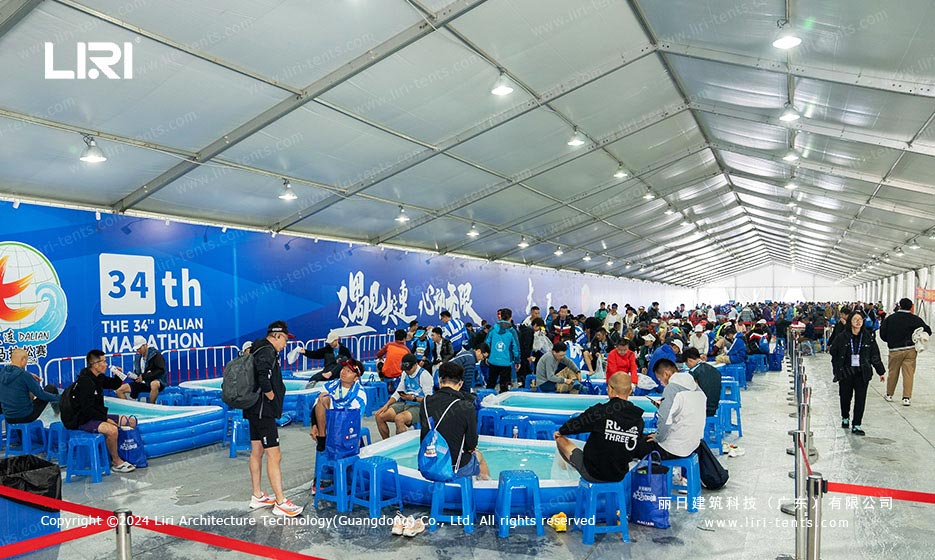

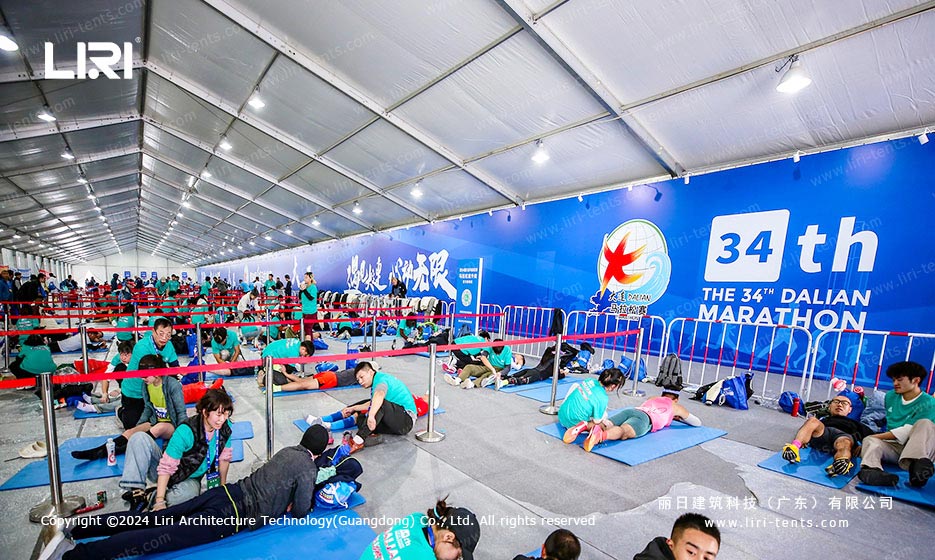

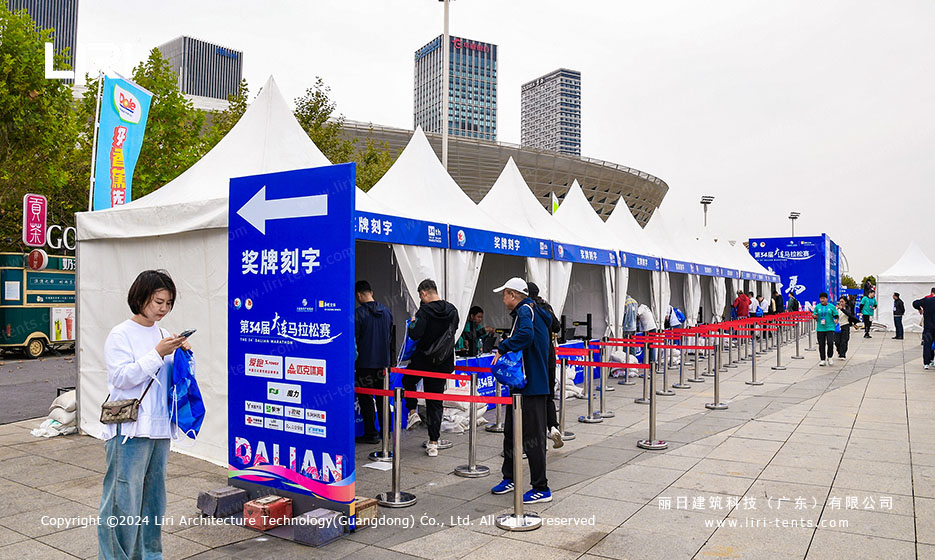

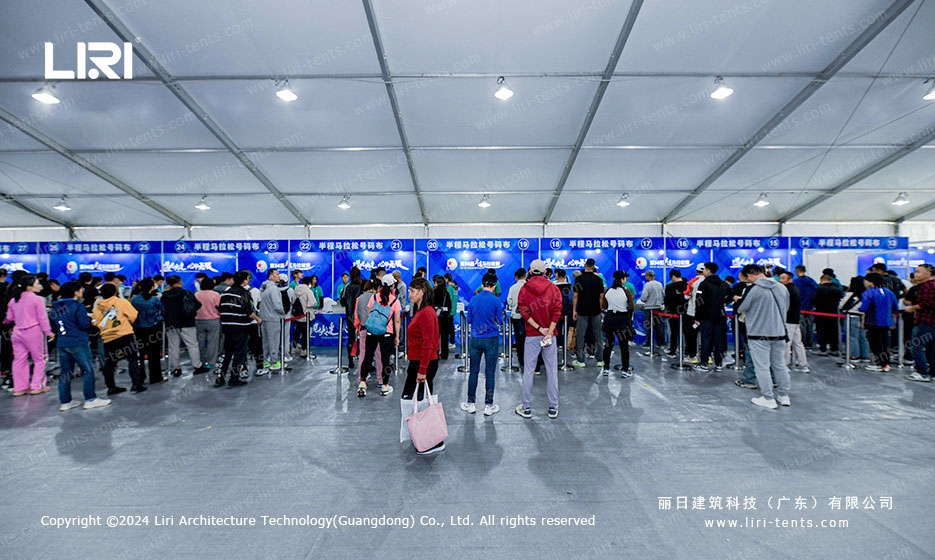

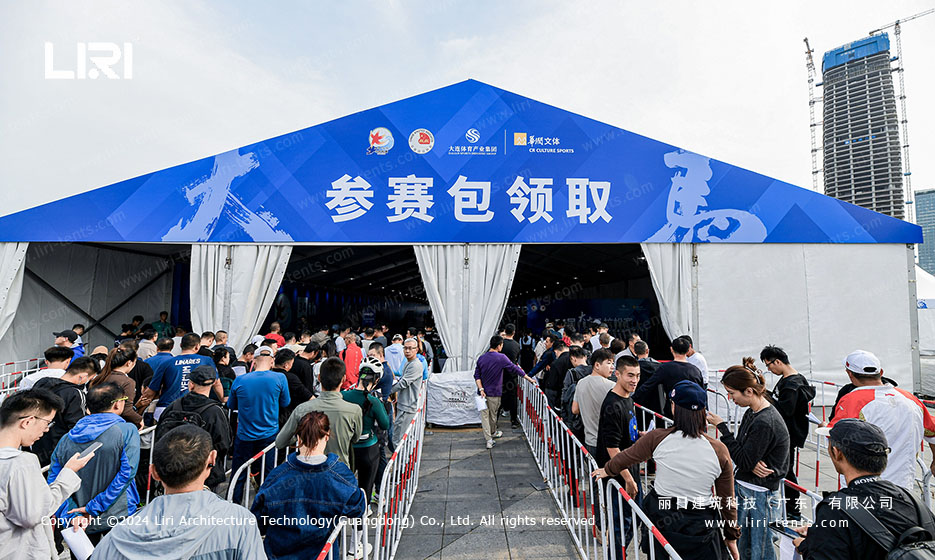

By virtue of its exquisite technology and distinguished quality, Liri provides multifunctional sports events tents for marathon races in all parts of China. In the 2024 Dalian Marathon Race, Liri provides prefabricated movable structures, such as big security check tents, big warehouse tents, official sale rooms for cultural and creative products, lounges, etc. As an important supplier and sponsor of those big sports events, Liri has always been able to meet the various needs of the events. These prefabricated movable structures use high-intensity aluminum alloy and PVDF knife-coated roof covers, make sure that the sports events can be held in almost any weather.

Liri provides capacious spaces of brand-showing and activities for the events’ title sponsors as a supplier, which becomes an amazing part of the sports events. Every support and sponsor from Liri to the nationwide sports is a firm commitment to the nationwide health. Therefore Liri has always been doing its best, providing services with the highest qualities to the sports events.

With the approaching Zhuhai Marathon Race, Liri cooperates closely with the sports event organizers again and creates comfortable and convenient sports event environments for the athletes and audiences, which not only approves of Liri’s strength but also highly trusts its quality of service.

Liri is client demands oriented, keeps pursuing excellence, and has made great contributions to the development of Chinese sport’s career. In the future, we will keep improving our services and qualities to become the firm partner of marathon races of all parts of China, and create beautiful stories of the Chinese nationwide sport’s career.

Sports Event Tent Series Specifications
Ancho de vanoAltura del aleroAltura de la crestaDistancia entre módulosPerfil principal
8 m3,3 m4,53 m5 m152 x 119 x 3,5 mm (4 canales)
10 m3,3 m4,85 m5 m152 x 119 x 3,5 mm (4 canales)
10 m4 m5,55 m5 m152 x 119 x 3,5 mm (4 canales)
12 m3,3 m5,16 m5 m152 x 119 x 3,5 mm (4 canales)
12,5 m3,3 m5,29 m5 m152 x 119 x 3,5 mm (4 canales)
15 m3,3 m5,62 m5 m152 x 119 x 3,5 mm (4 canales)
15 m4 m6,32 m5 m152 x 119 x 3,5 mm (4 canales)
16 m3,3 m5,72 m5 m152 x 119 x 3,5 mm (4 canales)
18 m3,3 m6,01 m5 m152 x 119 x 3,5 mm (4 canales)
Características

Perfiles de la estructura: aluminio extruido 6061/T6 (15HW) de alta resistencia

Revestimiento de tejido: tejido de poliéster de alta calidad con doble recubrimiento de PVC; impermeable 100%; ignífugo según las normas DIN 4102 B1, M2 y CFM; resistente a los rayos UV, resistente al desgarro, con capacidad de autolimpieza, etc.

Conectores: acero resistente galvanizado en caliente

Rango de temperatura admisible: de -30 °C a +70 °C

Resistencia al viento: máx. 100 km/h

Carga de nieve: 75 kg/m² (la nieve no se acumula con un techo de gran pendiente)

Fácil de montar y desmontar

Sin postes interiores, 100 % del espacio interior disponible
