Fabricante de estructuras de carpas para hangares de aviones

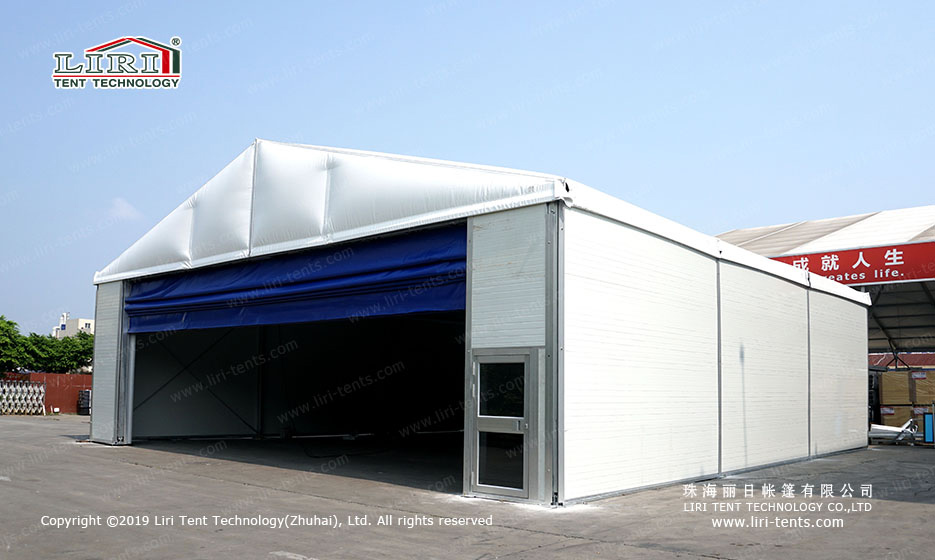

Aircraft Hangar Tent 1

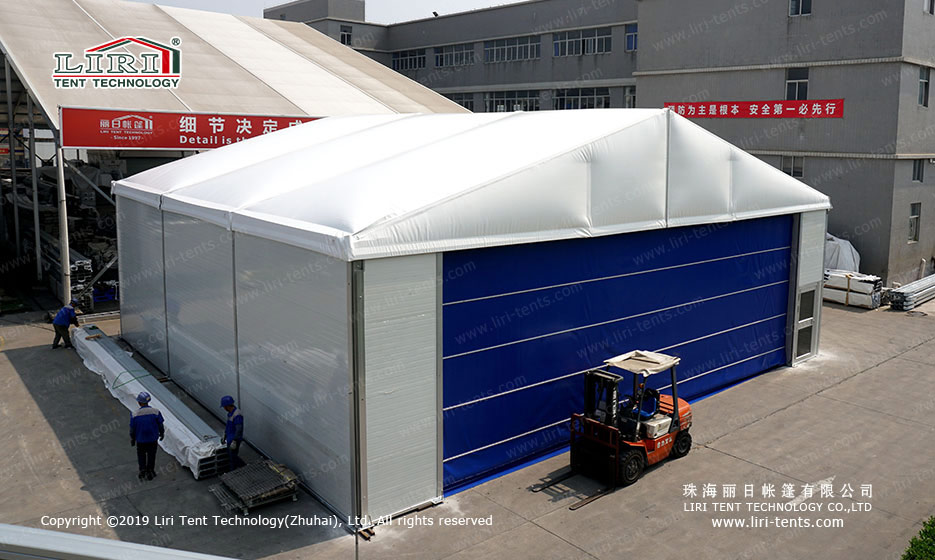

Hangar Tent Structure 1

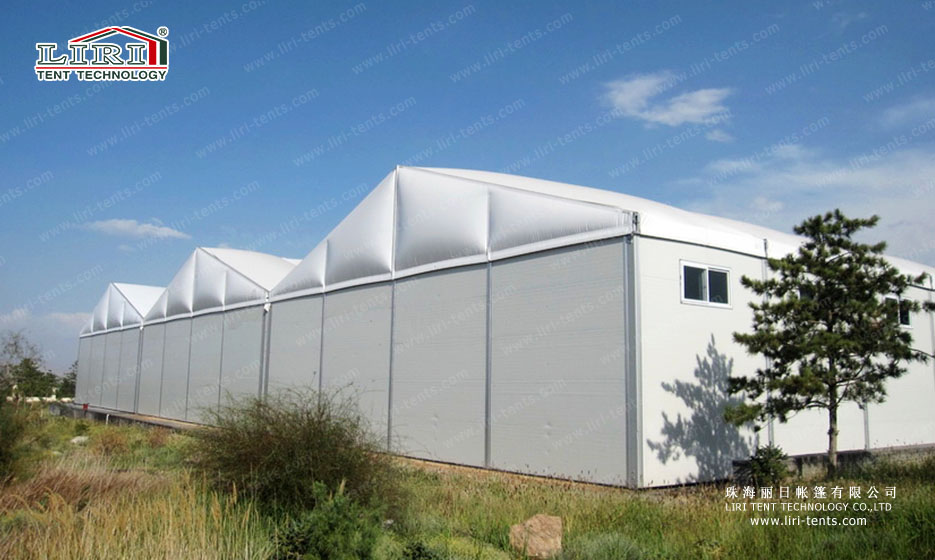

Hangar Tent Structure

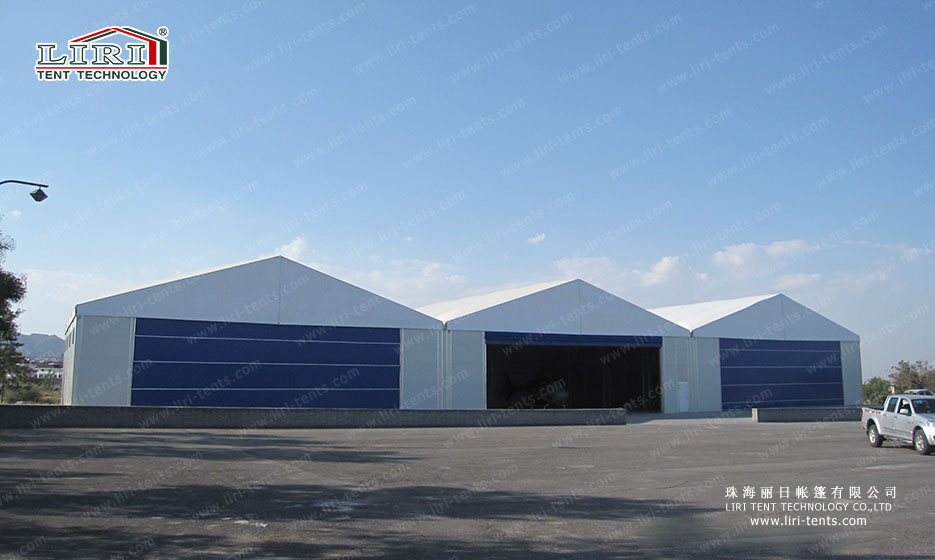

mobile tent with aluminum

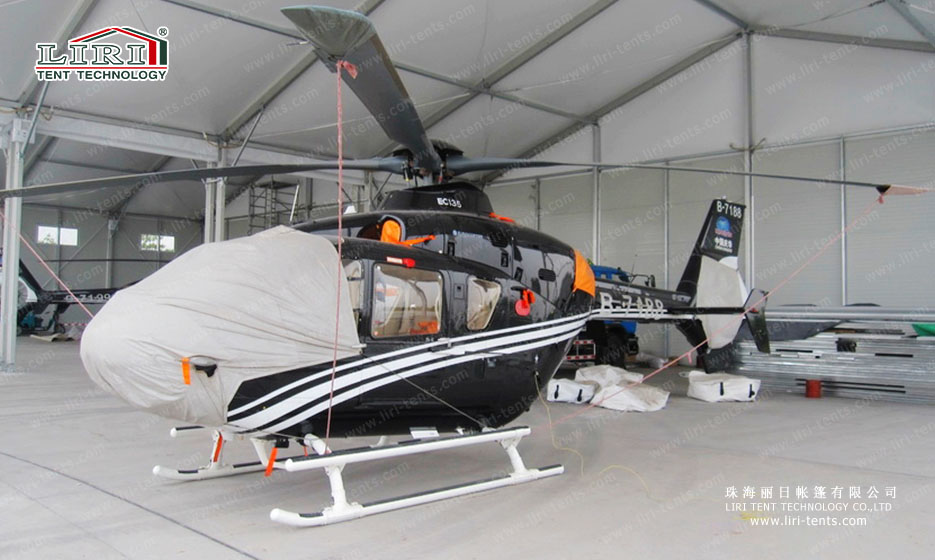

mobile tent

Military Tent With Doors For Aircraft Hangar

Acerca del proyecto

Aircraft hangar tent is the best choice as your aircraft hanger.

The hangar tent is the latest tent series developed by Zhuhai Liri Tent Technology Co., applying to the Naval Aviation and Civil Aviation as temporary or permanent hangars for light aircrafts. You can also use it as a carpa de almacén.

The aircraft hangar tent is durable and sturdy which able to resist up to 120KM/hour (0.7KN/m2 wind loading). Its small transport dimension, easy-assembling and disassembling characters make this tent to be the best choice for hangars of Naval Aviation and Civil Aviation and other enterprises.

Advantage:
1. high wind loading capacity
2. high snow loading capacity
3. high quality aluminum frame
4. sandwich walls
5. inflatable PVC fabric roof cover with heat insulation,preservation and thermostatic effect.

The PVC fabric of aircraft hangar tent is double sides thickened actylic suface,flame retardant to DIN4102.B1.M2 and CFM/NFPA701

Military Tent Series Specifications
Ancho de vanoAltura del aleroAltura de la crestaDistancia entre módulosPerfil principal
10 m3,88 m5,53 m5 m204 x 120 x 4 mm (4 canales)
12 m3,88 m5,83 m5 m204 x 120 x 4 mm (4 canales)
15 m3,88 m6,3 m5 m204 x 120 x 4 mm (4 canales)
16 m4 m6,5 m5 m204 x 120 x 4 mm (4 canales)
18 m3,88 m6,9 m5 m204 x 120 x 4 mm (4 canales)
20 m3,88 m7,1 m5 m204 x 120 x 4 mm (4 canales)
20 m6 m9,22 m5 m204 x 120 x 4 mm (4 canales)
21 m3,88 m7,25 m5 m204 x 120 x 4 mm (4 canales)
25 m3,88 m7,88 m5 m204 x 120 x 4 mm (4 canales)
Características

Puntales del bastidor: aluminio extruido prensado a alta presión 6061/T6 (15HW).

Funda de tela: tejido de poliéster de alta calidad con doble recubrimiento de PVC; impermeable 100%; ignífugo según las normas DIN 4102 B1, M2 y CFM; resistente a los rayos UV, resistente al desgarro, con capacidad de autolimpieza, etc.

Conectores: acero resistente galvanizado en caliente

Rango de temperatura admisible: de -30 °C a +70 °C

Resistencia al viento: máx. 100 km/h

Carga de nieve: 75 kg/m² (la nieve no se acumula con un techo de gran pendiente)

Fácil de montar y desmontar

Sin pilar en el interior, espacio interior disponible: 100%.
