Tienda de campaña de cuartel

Army Barracks Tent

Acerca del proyecto

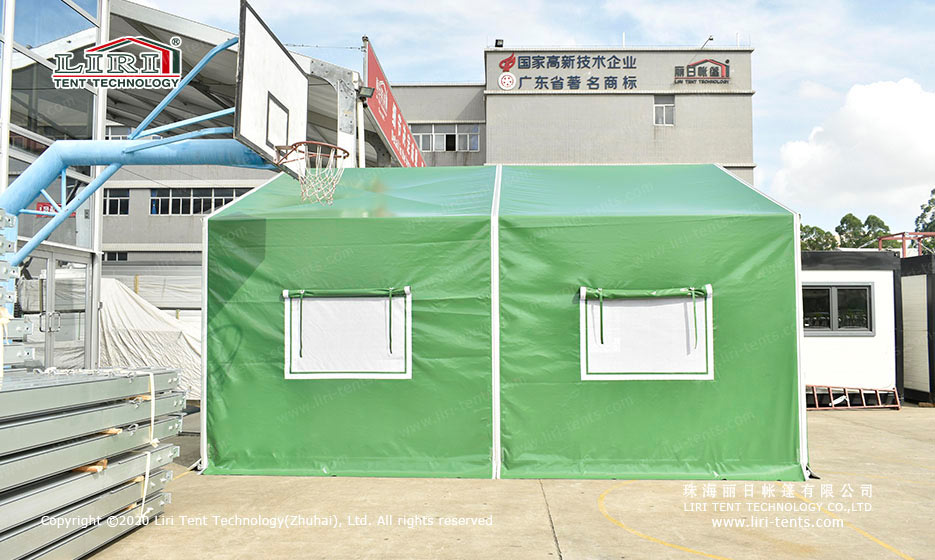

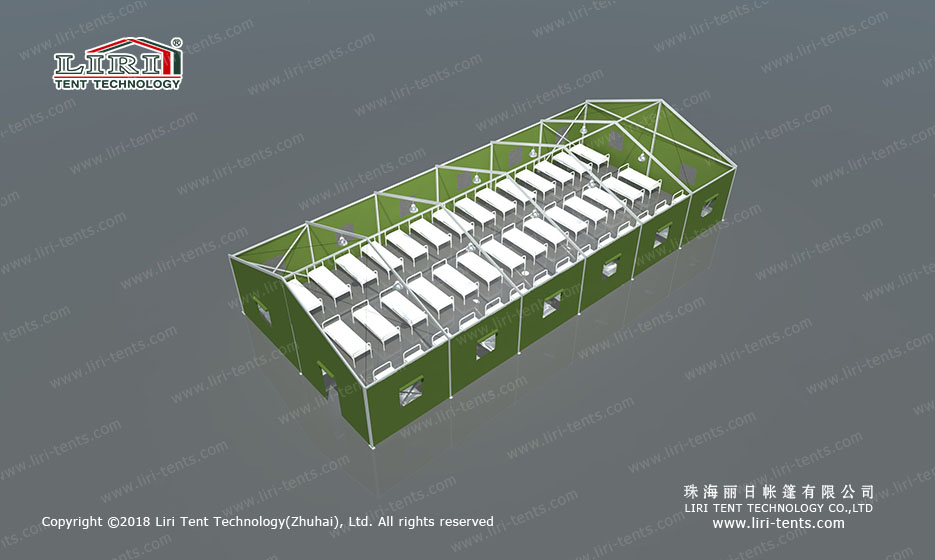

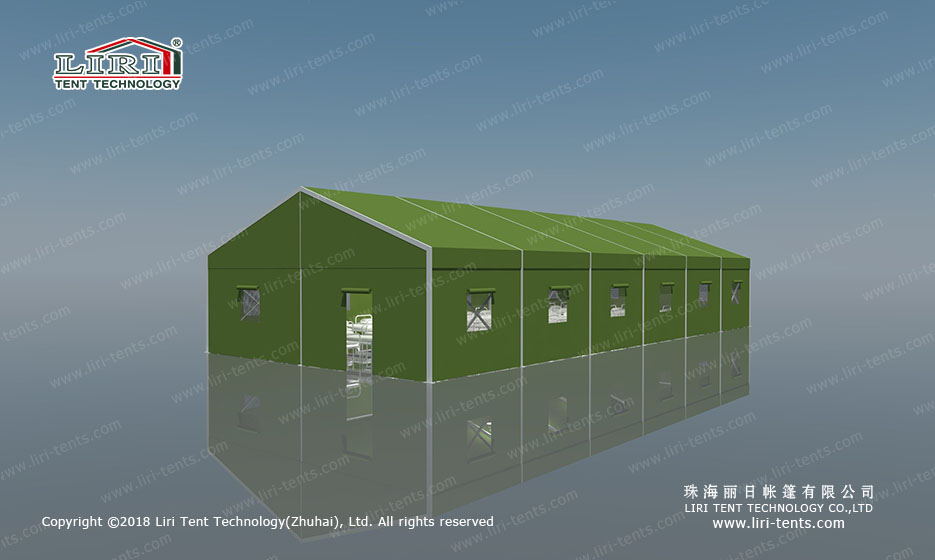

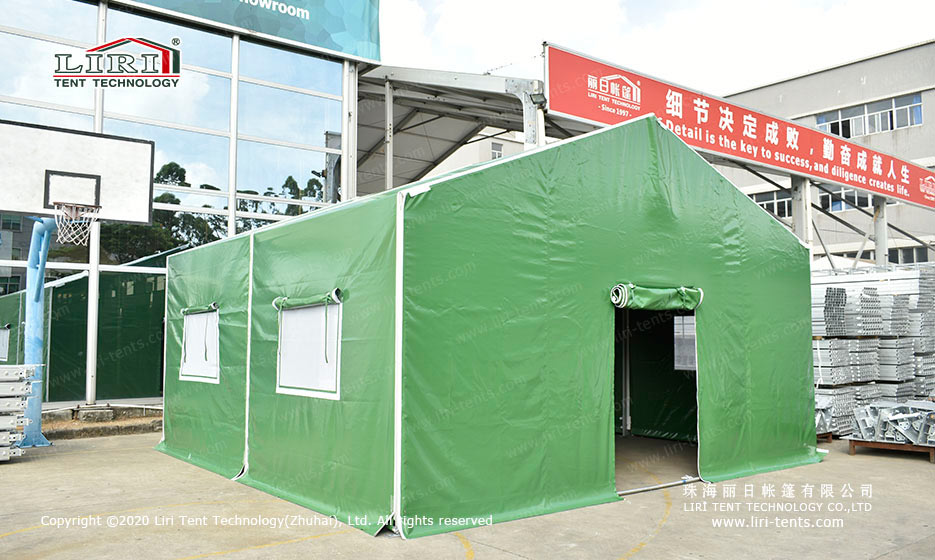

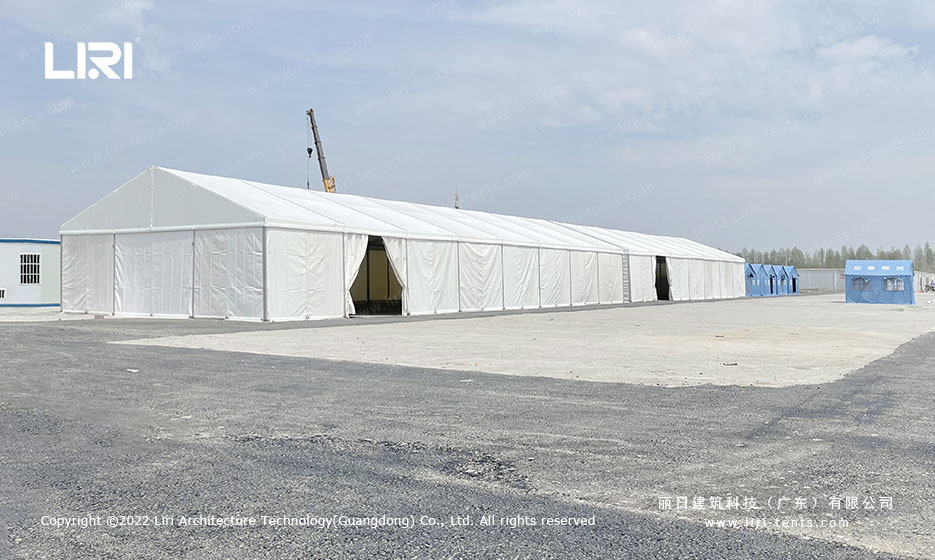

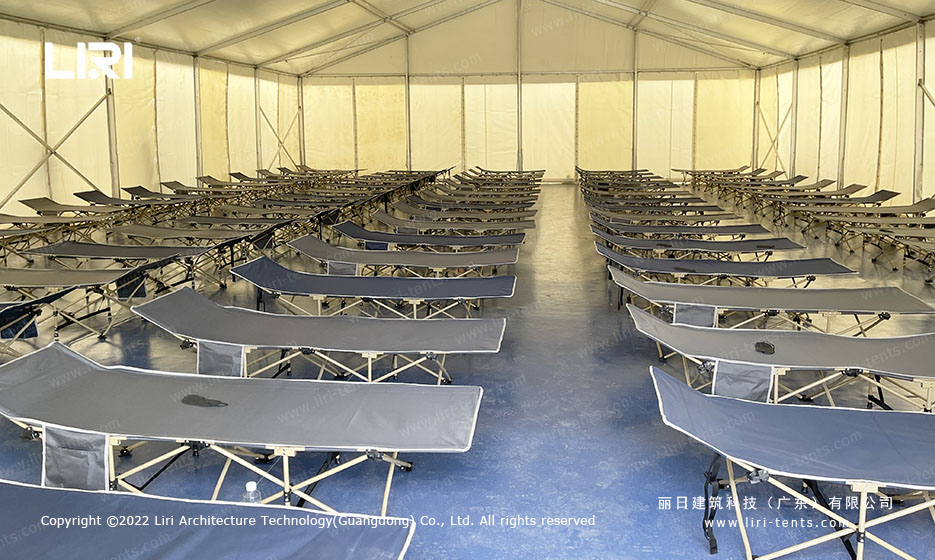

Barracks tent can be installed quickly by LIRI TENT with its rapid deployed-structure, which is suitable for temporary military camps and training bases. The span of the modular barracks tent can range from 3 to 60 meters and can accommodate hundreds of troops to thousands. In addition to conventional equipment, solid wall, hangar door, and other accessories also can be provided to meet different requirements. Compared with the old camping tents, it has a stronger structure and complete functional support.

Barracks Tent Features:

  • Adopt high strength extruded and anodized aluminum which can withstand extreme weather.
  • PVC-coated polyester textile which is waterproof and UV resistant.
  • suitable for all types of ground, easy to assemble.
  • No internal support to maximize the availability of military camps.
  • All the parts can be reused, also can be dismantled or installed in other places.

Besides barracks tent, we also provide military tent for temporary catering, hangars, military storage room or other function. Welcome to consult us to get more details.

Barracks Tent Series Specifications
Ancho de vanoAltura del aleroAltura de la crestaDistancia entre módulosPerfil principal
3 m2,6 m3,16 m3 m100 x 48 x 3,0 mm (4 canales)
4 m2,6 m3,35 m3 m100 x 48 x 3,0 mm (4 canales)
5 m2,6 m3,52 m3 m100 x 48 x 3,0 mm (4 canales)
6 m2,6 m3,71 m3 m100 x 48 x 3,0 mm (4 canales)
8 m2,6 m4,05 m3 m100 x 48 x 3,0 mm (4 canales)
9 m2,6 m4,24 m3 m100 x 48 x 3,0 mm (4 canales)
10 m2,6 m4,4 m3 m100 x 48 x 3,0 mm (4 canales)
12 m
2,6 m4,76 m3 m100 x 48 x 3,0 mm (4 canales)
Características

Puntales del bastidor: aluminio extruido prensado a alta presión 6061/T6 (15HW).

Funda de tela: tejido de poliéster de alta calidad con doble recubrimiento de PVC; impermeable 100%; ignífugo según las normas DIN 4102 B1, M2 y CFM; resistente a los rayos UV, resistente al desgarro, con capacidad de autolimpieza, etc.

Conectores: acero resistente galvanizado en caliente

Rango de temperatura admisible: de -30 °C a +70 °C

Resistencia al viento: máx. 100 km/h

Carga de nieve: 75 kg/m² (la nieve no se acumula con un techo de gran pendiente)

Fácil de montar y desmontar

Sin pilar en el interior, espacio interior disponible: 100%.
