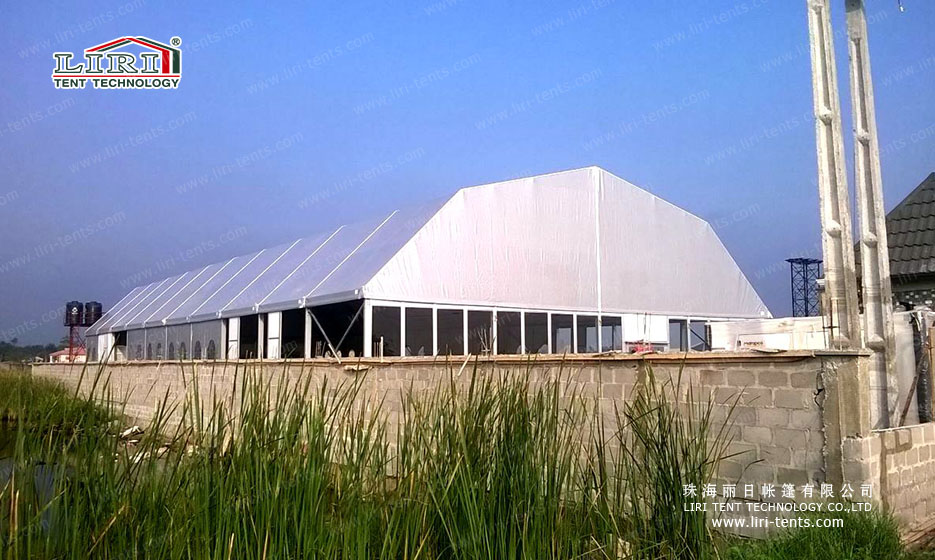

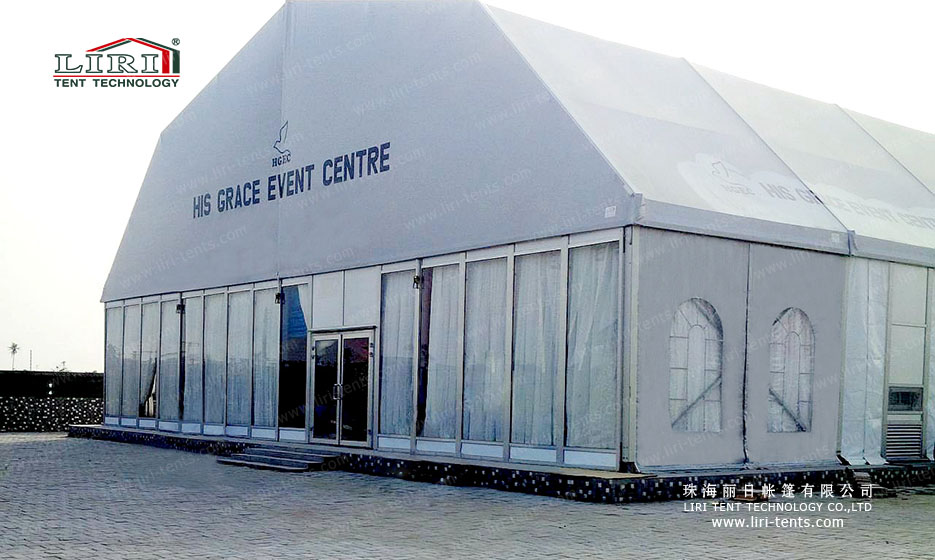

Carpa grande de forma poligonal para una celebración de boda

Outdoor Polygon Tent for Wedding Party

Acerca del proyecto

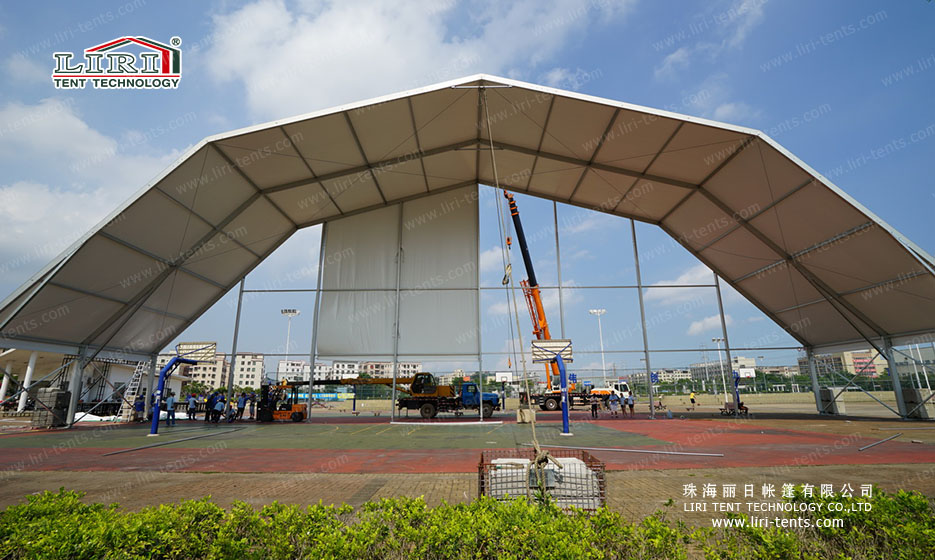

Outdoor polygon tent is designed for large outdoor events, which can accommodate about 3,000 people or more. And we adopt modular design for our tent, so the length is unlimited and expandable by 5m a bay.

With 400x120x7mm high quality aluminum profile. You can hold a 10,000-person wedding party with a 60-meter wide polygonal tent. The large polygon tent will make your event much more elegant and luxury with the unique roof design, which also provides you more available inner space.

In addition, You can also use large polygonal tents for large concert event, outdoor exhibition fair and conference center.

Especificaciones de la serie de carpas para bodas
Ancho de vanoAltura del aleroAltura de la crestaDistancia entre módulosPerfil principal
10 m4 m7.16m5 m204 x 120 x 4 mm (4 canales)
12 m4 m7.4m5 m204 x 120 x 4 mm (4 canales)
15 m4 m8.75m5 m204 x 120 x 4 mm (4 canales)
18 m4 m9.15m5 m204 x 120 x 4 mm (4 canales)
20 m4 m9.42m5 m204 x 120 x 4 mm (4 canales)
25 m4 m11.72m5 m256 x 121 x 5 mm (4 canales)
30 m4 m13.2m5 m256 x 121 x 5 mm (4 canales)
40 m4 m15.4m5 m300 x 120 x 5 mm (4 canales)
50 m4 m16 m5 m300 x 120 x 5 mm (4 canales)
60 m4 m17m5 m400x120x7mm (4 - channel)
80m6 m
21.5m
5 m500x150x7/8mm (4 - channel)
Características

Perfiles de la estructura: aluminio extruido 6061/T6 (15HW) de alta resistencia

Revestimiento de tejido: tejido de poliéster de alta calidad con doble recubrimiento de PVC; impermeable 100%; ignífugo según las normas DIN 4102 B1, M2 y CFM; resistente a los rayos UV, resistente al desgarro, con capacidad de autolimpieza, etc.

Conectores: acero resistente galvanizado en caliente

Rango de temperatura admisible: de -30 °C a +70 °C

Resistencia al viento: máx. 100 km/h

Carga de nieve: 75 kg/m² (la nieve no se acumula con un techo de gran pendiente)

Fácil de montar y desmontar

Sin postes interiores, 100 % del espacio interior disponible
