Temporary Exhibition Canopy Structures

Temporary Tent Structures for Exhibition

Acerca del proyecto

LIRI exhibition canopy is becoming more and more popular due to environmental protection, easy installation, and reuse. It is also the structure which is developed by the government. Recently LIRI offered huge exhibition canopy as Green energy exhibition carrier for the second season international conference on hydrogen energy and fuel cell industry development to show zero release.

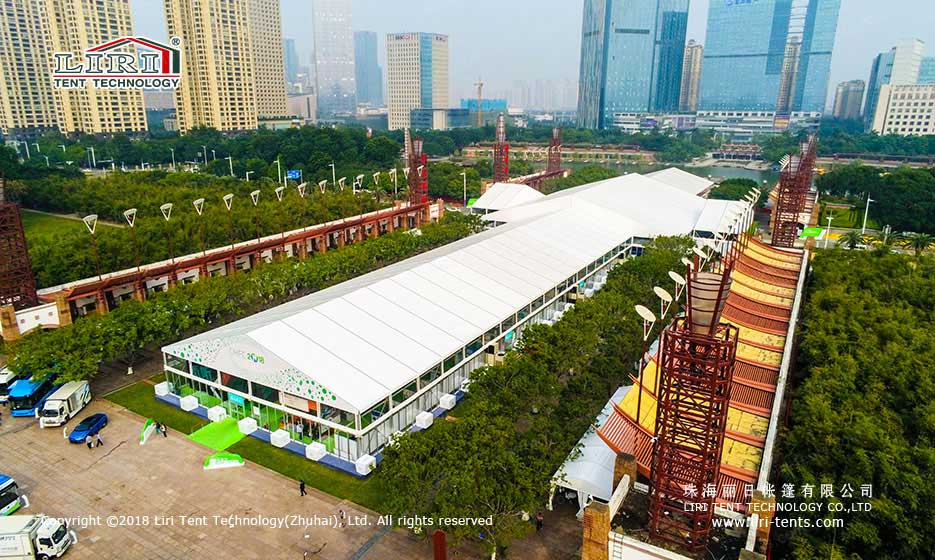

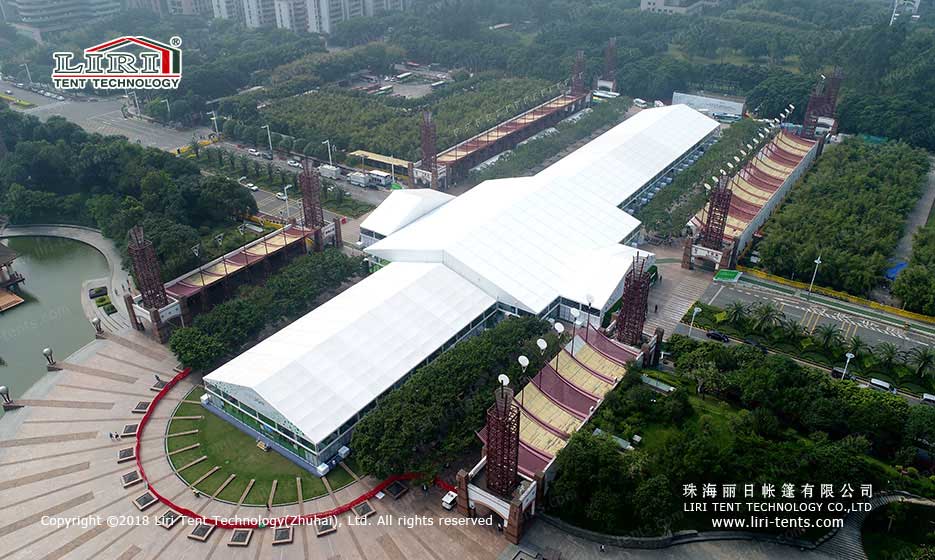

Over 6,000 sqm of temporary exhibition canopy

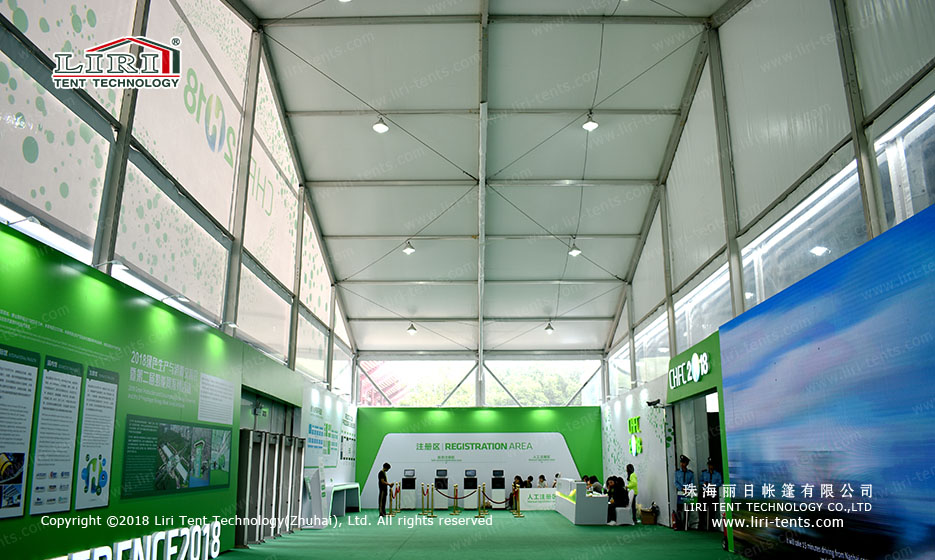

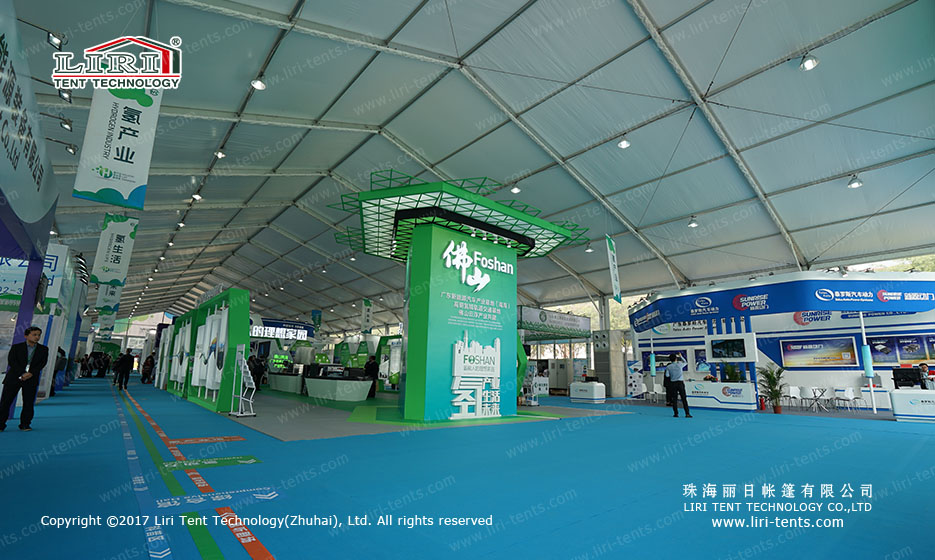

In the hydrogen weeks, exhibition halls have the hydrogen industry hall, the comprehensive hall and outdoor hall of hydrogen power. In total over 10000 sqm. No any barrier inside, nice ventilation, capacious space and fit more than 150 exhibitors.

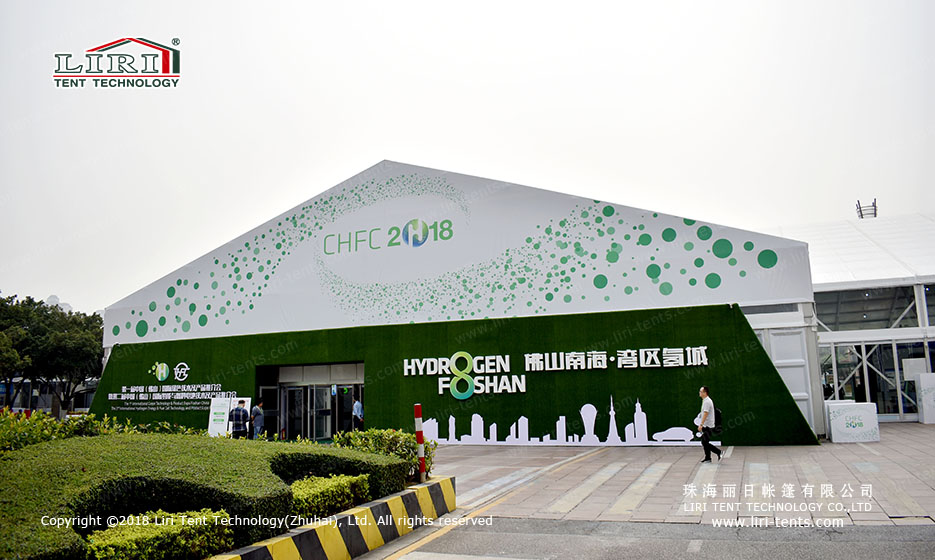

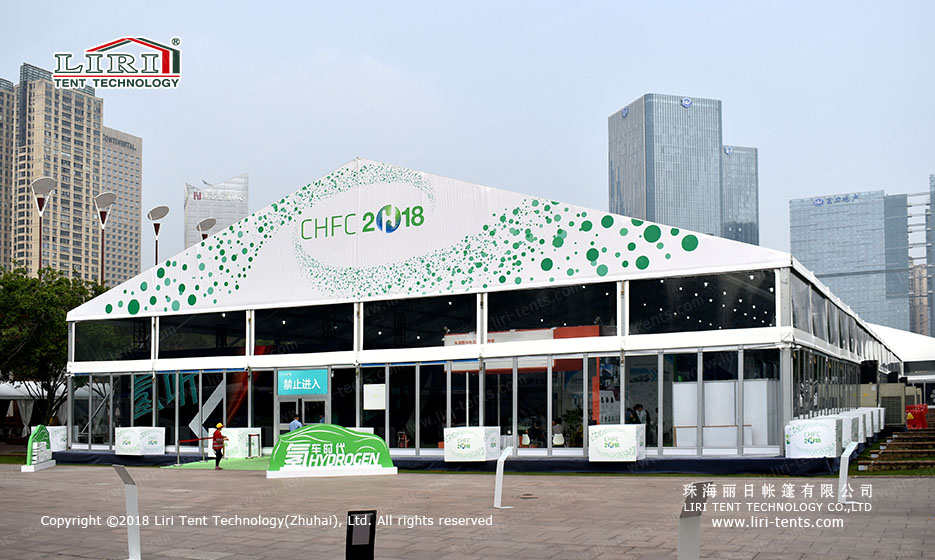

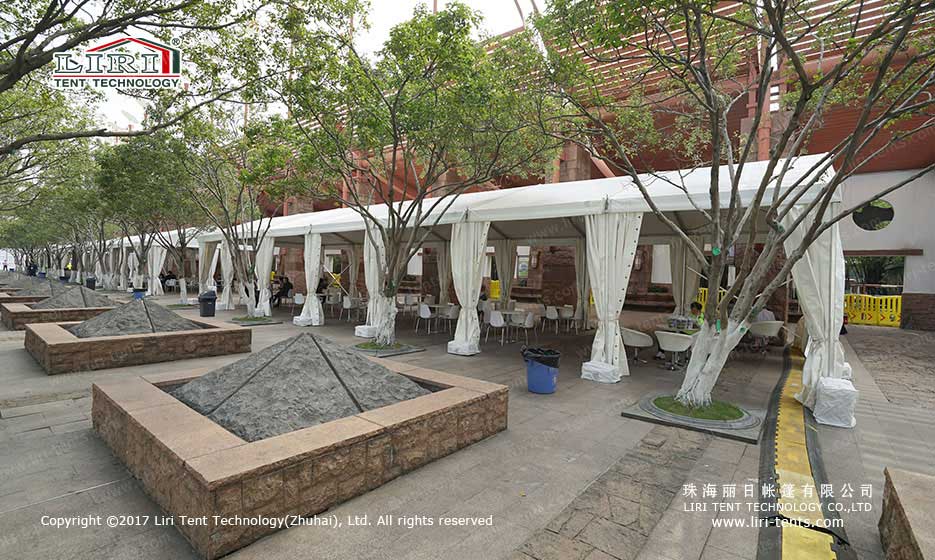

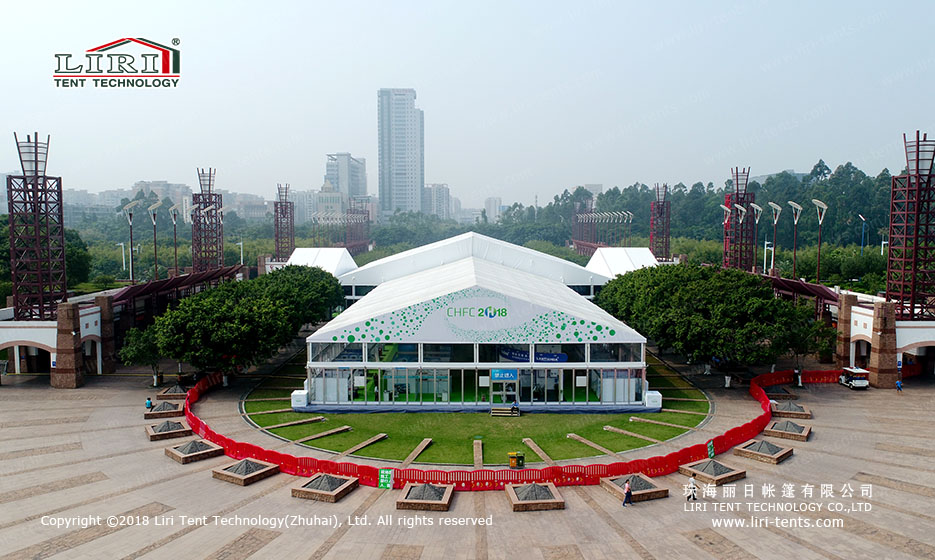

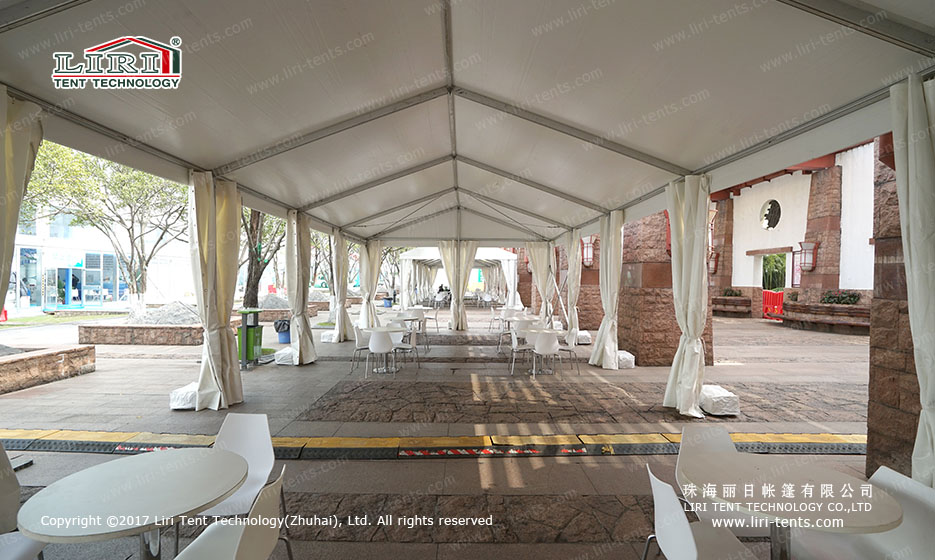

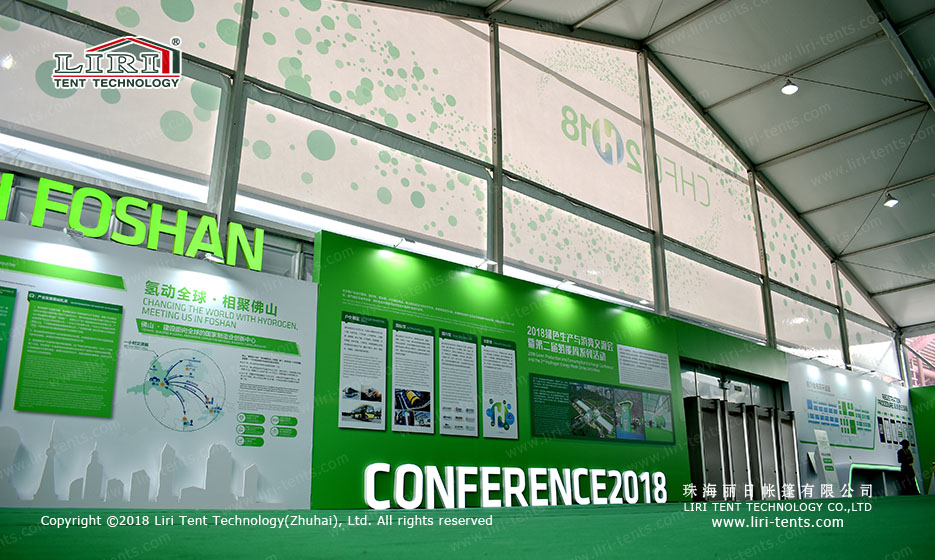

Because it is all products in this exhibition are going green and environmental protection, so LIRI designed the special appearance of exhibition canopy for  Expo Theme, and used green as the main color inside. In the meanwhile, you can see exclusive logo are printed on fabric. In the rest area, you can also find our tents which can be assembled easily.

As widely-watched ultimate energy, the hydrogen industry has infinite imaginary space. Following the implementation of hydrogen energy-related industries and many major project activities, more and more environmental companies joined it. Also as new environmental exhibition canopy, LIRI mobile structures have infinite development space. We will continue to offer convenient solutions for temporary outdoor exhibition spaces.

Especificaciones de la serie de carpas para exposiciones
Ancho de vanoAltura del aleroAltura de la crestaDistancia entre módulosPerfil principal
40 m5 m11,5 m5 m400x120x6/7mm (4 - channel)
50 m5 m13m5 m400x120x6/7mm (4 - channel)
55m5 m14m5 m400x120x6/7mm (4 - channel)
60 m5 m14.6m5 m400x120x6/7mm (4 - channel)
Características

Puntales del bastidor: aluminio extruido prensado a alta presión 6061/T6 (15HW).

Funda de tela: tejido de poliéster de alta calidad con doble recubrimiento de PVC; impermeable 100%; ignífugo según las normas DIN 4102 B1, M2 y CFM; resistente a los rayos UV, resistente al desgarro, con capacidad de autolimpieza, etc.

Conectores: acero resistente galvanizado en caliente

Rango de temperatura admisible: de -30 °C a +70 °C

Resistencia al viento: máx. 100 km/h

Carga de nieve: 75 kg/m² (la nieve no se acumula con un techo de gran pendiente)

Fácil de montar y desmontar

Sin pilar en el interior, espacio interior disponible: 100%.
