Liri’s high-strength aluminum alloy frame tent with high resistance to wind and rain, providing a better working environment for workers in severe weather such as wind, snow and low temperatures, and also make the epidemic prevention and inspection work more smoothly. It can be used as temporary vehicle detection tent, personnel temperature detection tent, isolation tent, etc.
Vehicle Epidemic Detection Tent

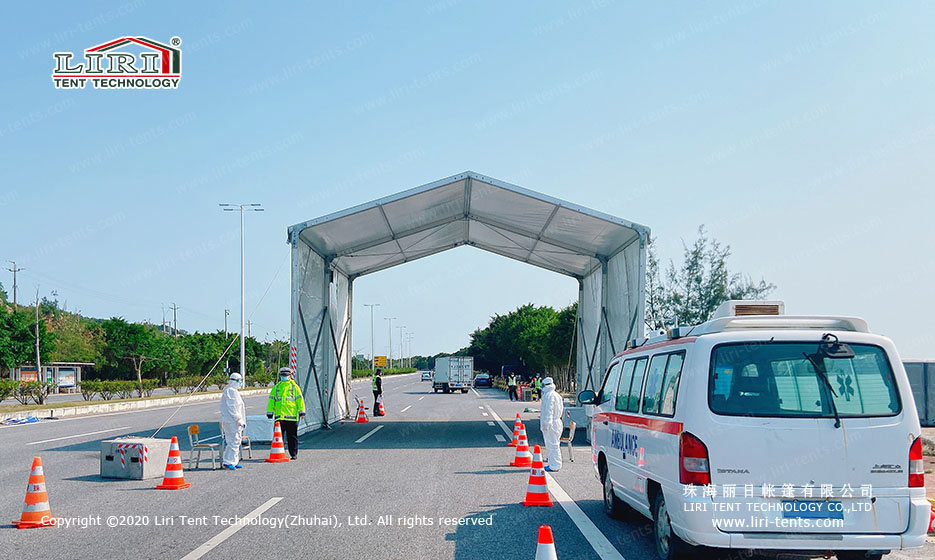

Vehicle Epidemic Detection Tent Introduce
Acerca del proyecto
Medical Tents Series Specifications
| Ancho de vano | Altura del alero | Altura de la cresta | Distancia entre módulos | Perfil principal |
|---|---|---|---|---|
| 3 m | 2,6 m | 3,16 m | 3 m | 100 x 48 x 3,0 mm (4 canales) |
| 4 m | 2,6 m | 3,35 m | 3 m | 100 x 48 x 3,0 mm (4 canales) |
| 5 m | 2,6 m | 3,52 m | 3 m | 100 x 48 x 3,0 mm (4 canales) |
| 6 m | 2,6 m | 3,71 m | 3 m | 100 x 48 x 3,0 mm (4 canales) |
| 8 m | 2,6 m | 4,05 m | 3 m | 100 x 48 x 3,0 mm (4 canales) |
| 9 m | 2,6 m | 4,24 m | 3 m | 100 x 48 x 3,0 mm (4 canales) |
| 10 m | 2,6 m | 4,4 m | 3 m | 100 x 48 x 3,0 mm (4 canales) |
| 12 m | 2,6 m | 4,76 m | 3 m | 100 x 48 x 3,0 mm (4 canales) |
Características
Perfiles de la estructura: aluminio extruido 6061/T6 (15HW) de alta resistencia
Funda de tela: tejido de poliéster de alta calidad con doble recubrimiento de PVC; impermeable 100%; ignífugo según las normas DIN 4102 B1, M2 y CFM; resistente a los rayos UV, resistente al desgarro, con capacidad de autolimpieza, etc.
Conectores: acero resistente galvanizado en caliente
Rango de temperatura admisible: de -30 °C a +70 °C
Resistencia al viento: máx. 100 km/h
Carga de nieve: 75 kg/m² (la nieve no se acumula con un techo de gran pendiente)
Fácil de montar y desmontar
Sin postes interiores, 100 % del espacio interior disponible
