Sports Event Tent For 2019 WTA Finals

WTA Tennis Sports Event Tent

Acerca del proyecto

The world’s highest level women’s tennis event

The WTA year-end finals are in progress in Shenzhen, the eight-day finals continue until November 3, Including the world’s highest scores Tennis player, Da Nao Zhimei, Bati, Ha Lepu, Anderscu, former world ranking number one player Priskova, two-time Wimbledon champion Kvitova, defending champion Svitorina,  Swiss star Bencic and other global top women’s occupations Tennis players will join in the fight for the annual champion.

Liri TentA built more than 30 different model tents

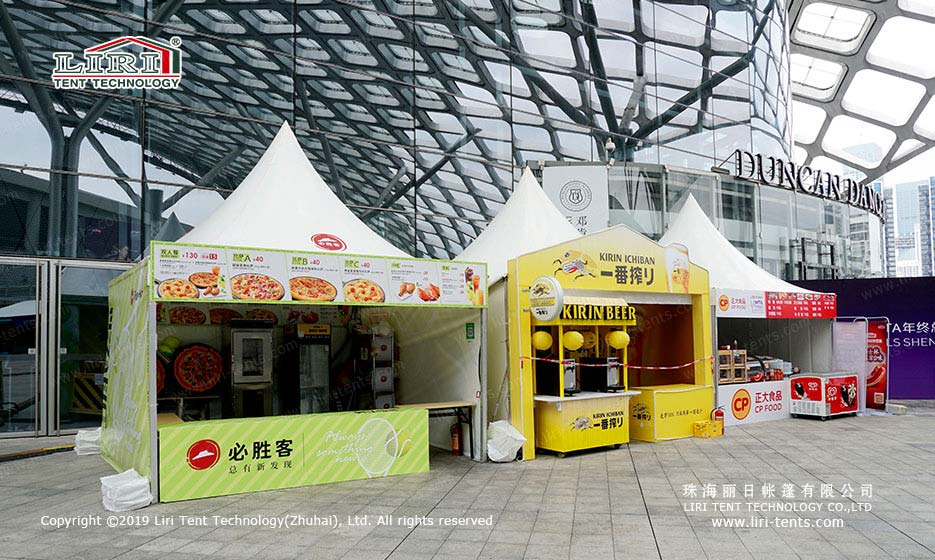

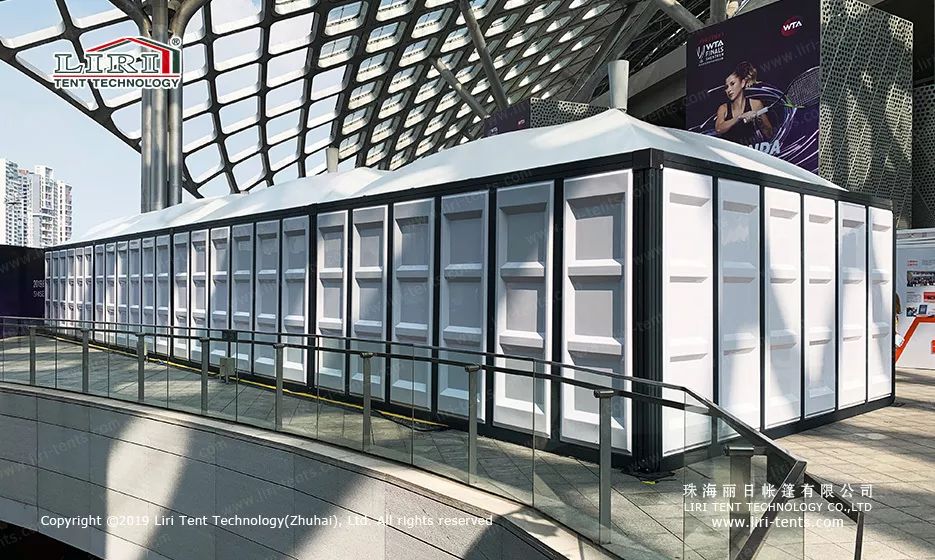

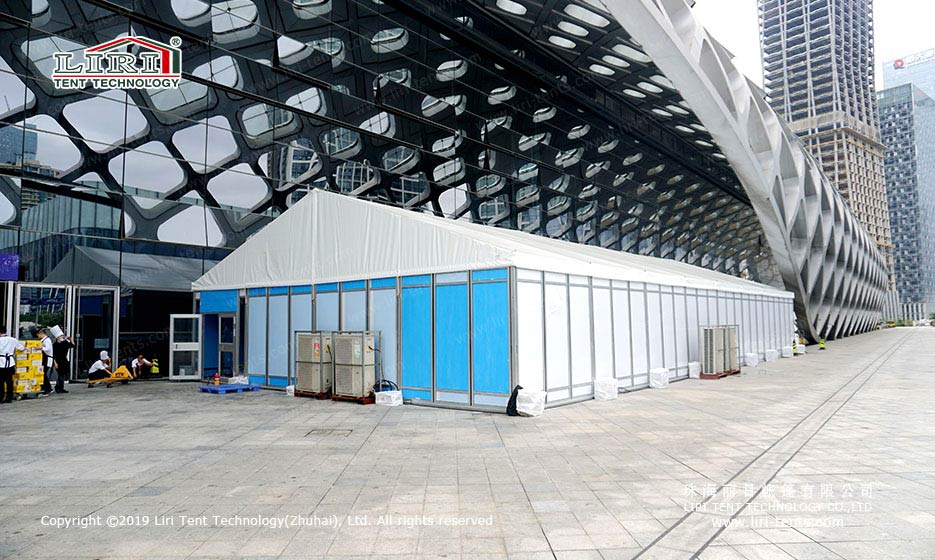

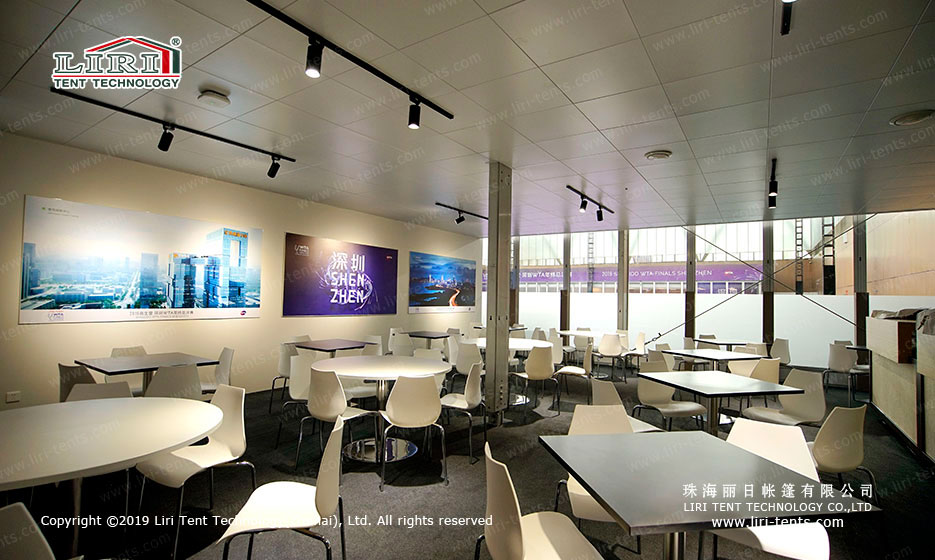

Area is over 5,000 square meters for the Shenzhen WTA Finals. The tents are used as the player center, media center, main dining room, restroom, ticket offices, souvenir shops, security checkpoints, certification authorities, emergency centers, catering tents, cooperative media display areas, and many other functions.

Modular tent

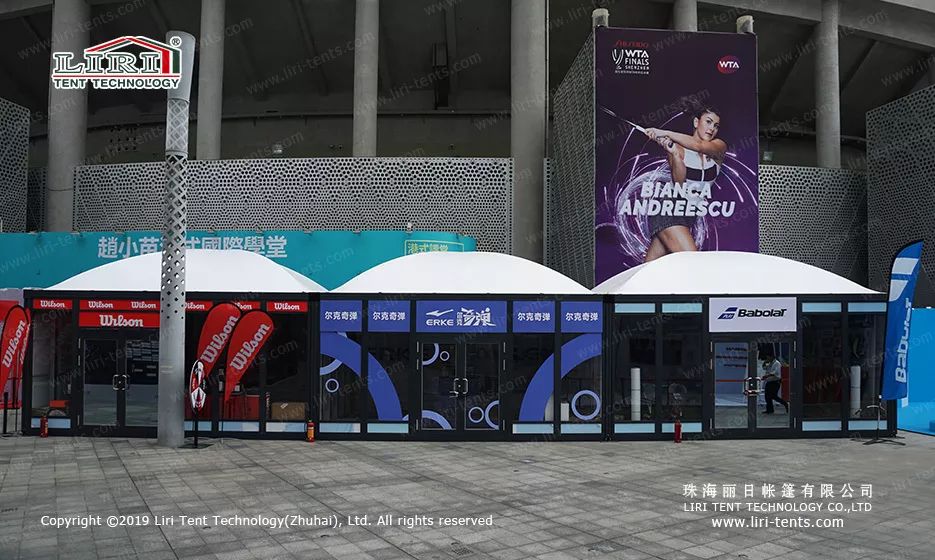

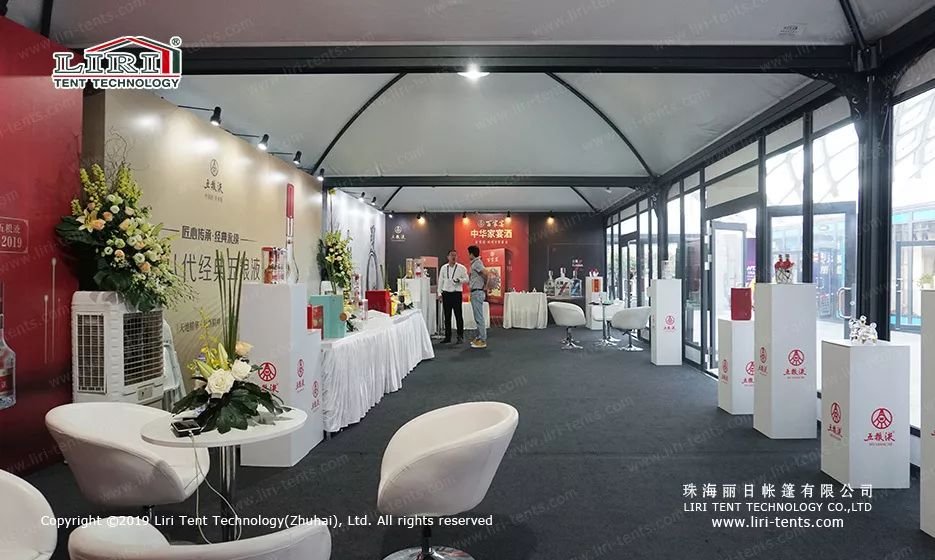

New carpa cuadrada modular with side-by-side connection design provide a display and reception space for major brand sponsors. We use an invisible weight plate to fix it under the wooden floor. The overall appearance is very beautiful. The modular tent is one of the most modular products in the modular structure. You can connect side by side, square connection, and any connection (personalized splicing) for seamless connection and unlimited expansion. It is suitable for temporary exhibition halls, mobile offices, VIP Lounges, multi-suite, etc.

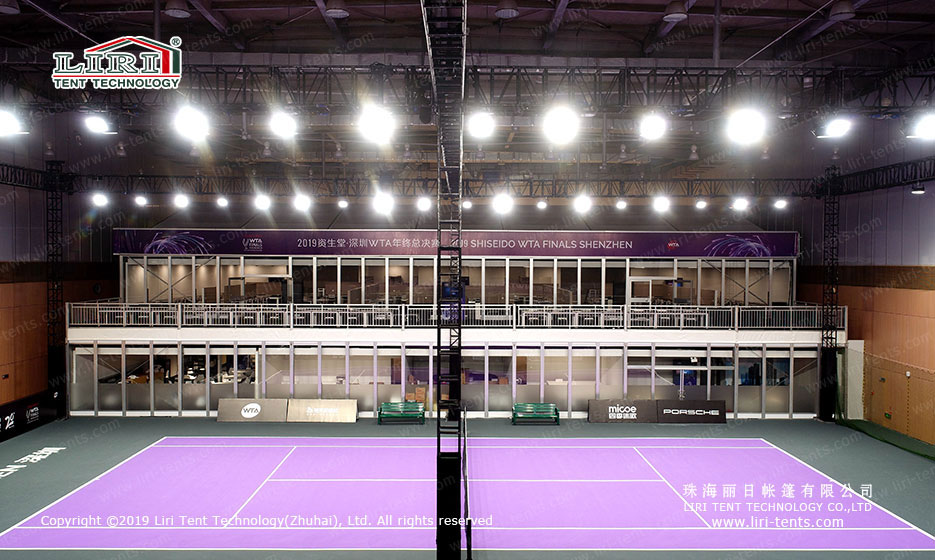

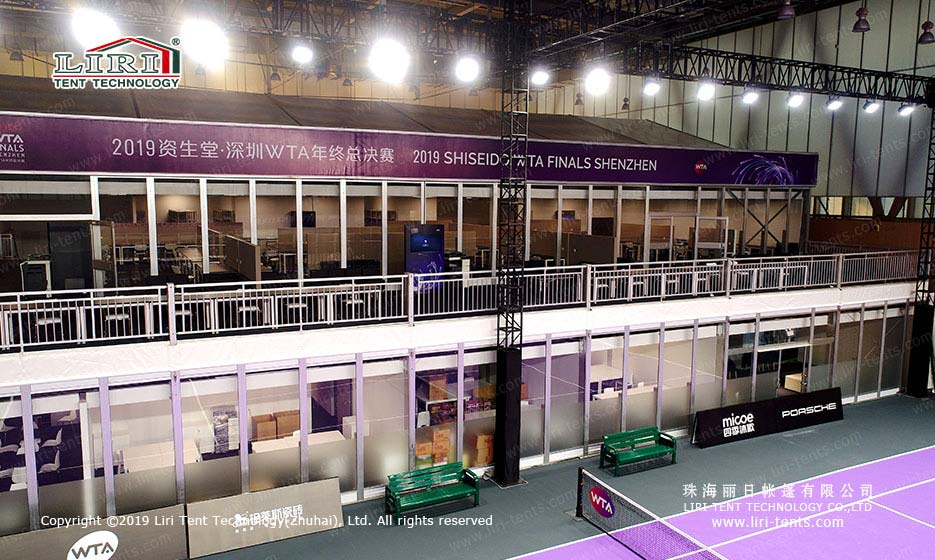

Double decker tent

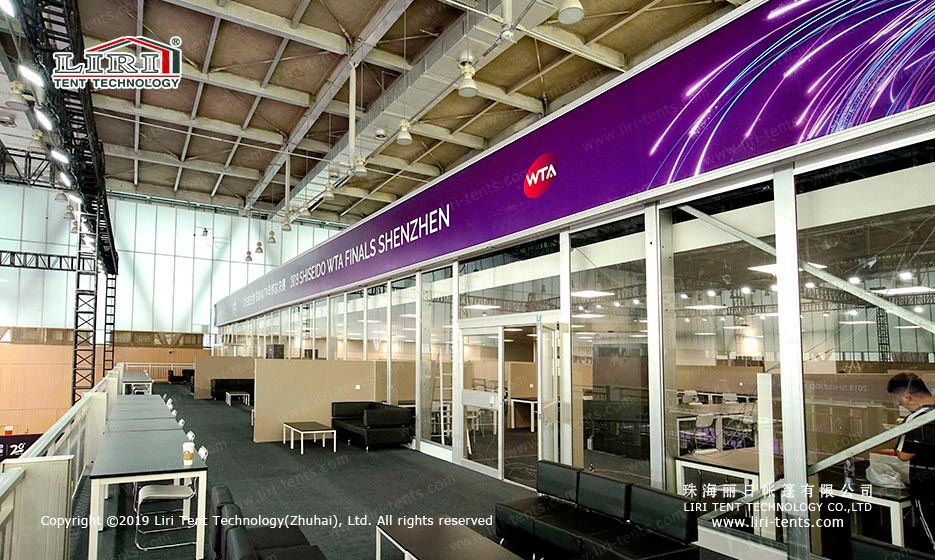

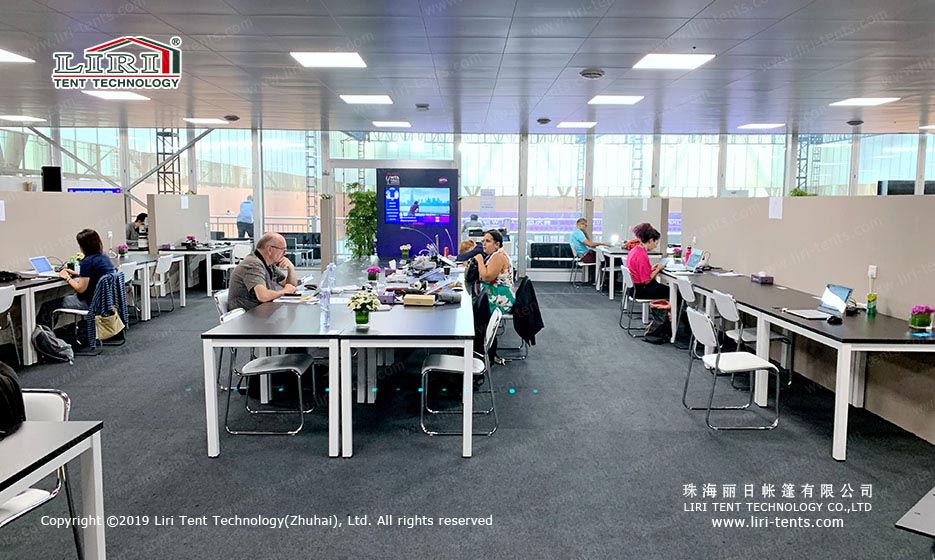

The event’s media center is set up with double decker tents. The two roofs are all equipped with ceilings. The modern sense is obvious and provides convenient conditions for the installation of the air-conditioning system.

This is the first time that Shenzhen hosting the WTA year-end finals and is the world’s highest-level women’s tennis professional event, with high international attention and influence. As the official sponsor, Liri Tent provides the best assembled tent building and service for this Shenzhen WTA, which will help the event to be successfully held.

For Shenzhen, hosting the WTA year-end finals for the first time, everything is like the Chinese slogan “My fright”. Perfectly fits its great technology, openness, tolerance, innovation and future. In addition to this Shenzhen WTA year-end finals, Liri Tent has been the official partner of the China Open, Wuhan Tennis Open, Tianjin Tennis Open and Zhuhai WTA for many years.

Especificaciones de la serie de carpas para eventos deportivos
Ancho de vanoAltura del aleroAltura de la crestaDistancia entre módulosPerfil principal
8 m3,3 m4,53 m5 m152 x 119 x 3,5 mm (4 canales)
10 m3,3 m4,85 m5 m152 x 119 x 3,5 mm (4 canales)
10 m4 m5,55 m5 m152 x 119 x 3,5 mm (4 canales)
12 m3,3 m5,16 m5 m152 x 119 x 3,5 mm (4 canales)
12,5 m3,3 m5,29 m5 m152 x 119 x 3,5 mm (4 canales)
15 m3,3 m5,62 m5 m152 x 119 x 3,5 mm (4 canales)
15 m4 m6,32 m5 m152 x 119 x 3,5 mm (4 canales)
16 m3,3 m5,72 m5 m152 x 119 x 3,5 mm (4 canales)
18 m3,3 m6,01 m5 m152 x 119 x 3,5 mm (4 canales)
Características

Perfiles de la estructura: aluminio extruido 6061/T6 (15HW) de alta resistencia

Funda de tela: tejido de poliéster de alta calidad con doble recubrimiento de PVC; impermeable 100%; ignífugo según las normas DIN 4102 B1, M2 y CFM; resistente a los rayos UV, resistente al desgarro, con capacidad de autolimpieza, etc.

Conectores: acero resistente galvanizado en caliente

Rango de temperatura admisible: de -30 °C a +70 °C

Resistencia al viento: máx. 100 km/h

Carga de nieve: 75 kg/m² (la nieve no se acumula con un techo de gran pendiente)

Fácil de montar y desmontar

Sin postes interiores, 100 % del espacio interior disponible
