Security Checkpoint Tent for Exhibition

Checkpoint Tent for Sale

Acerca del proyecto

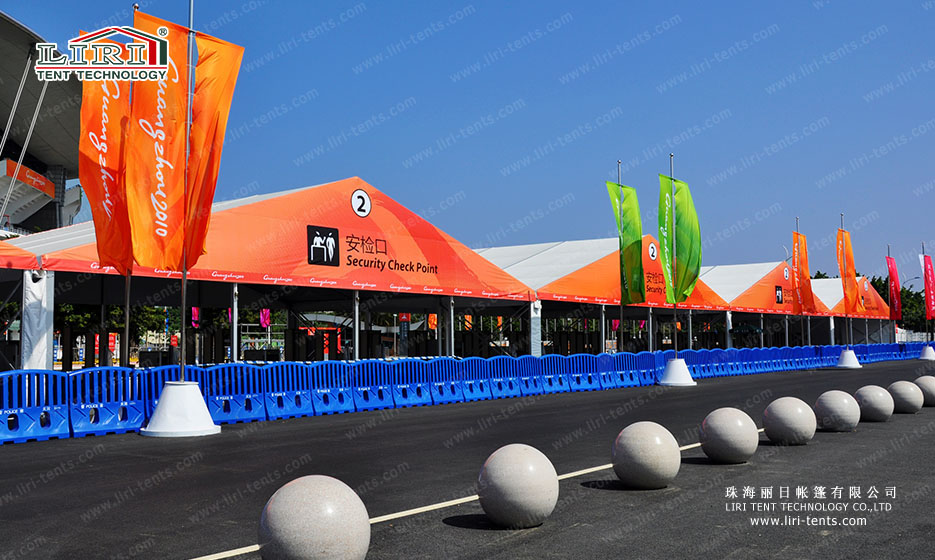

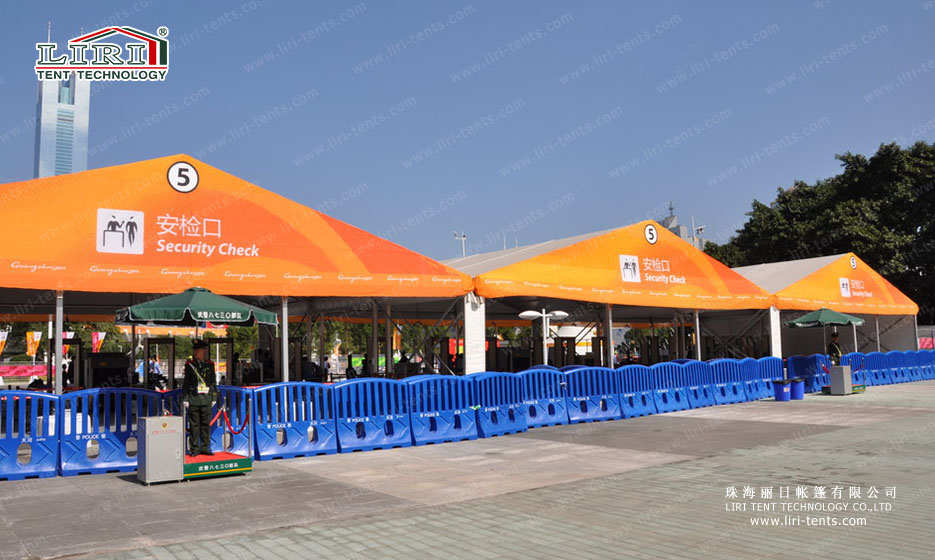

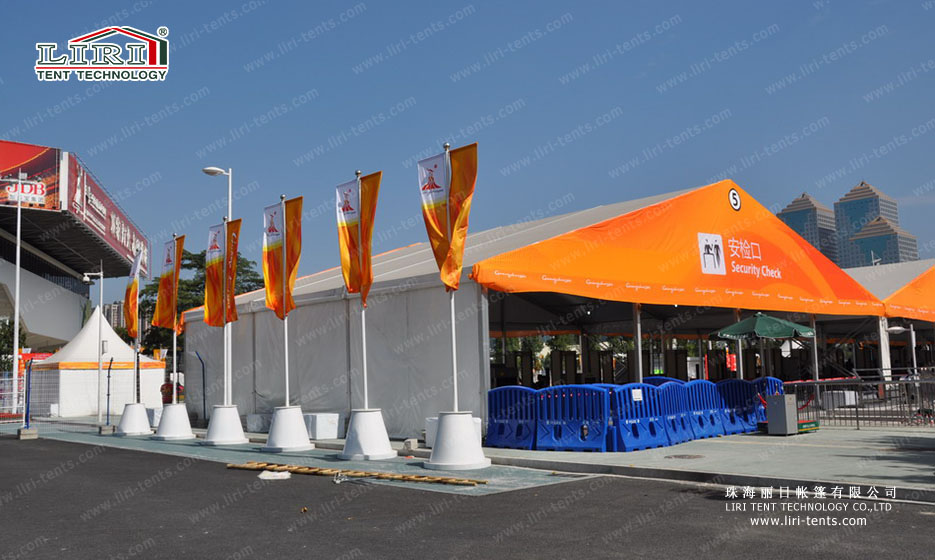

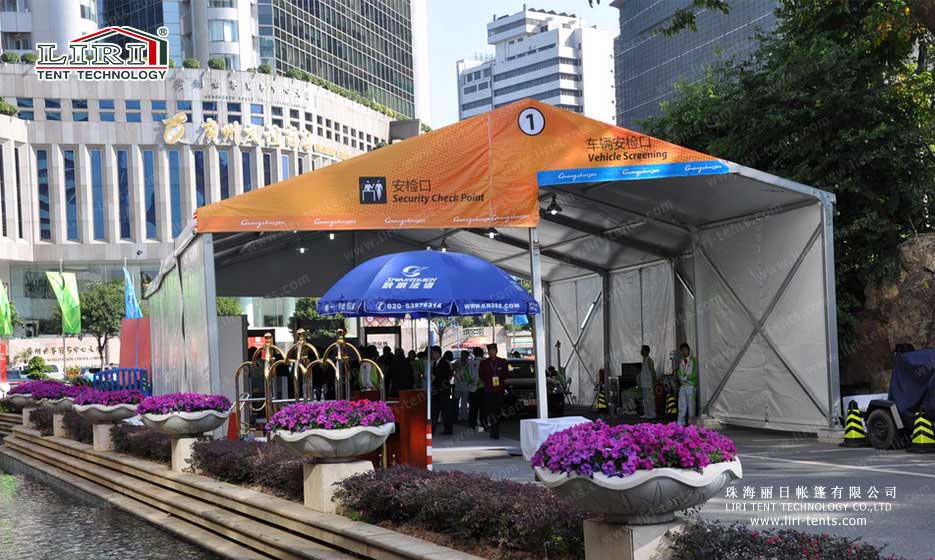

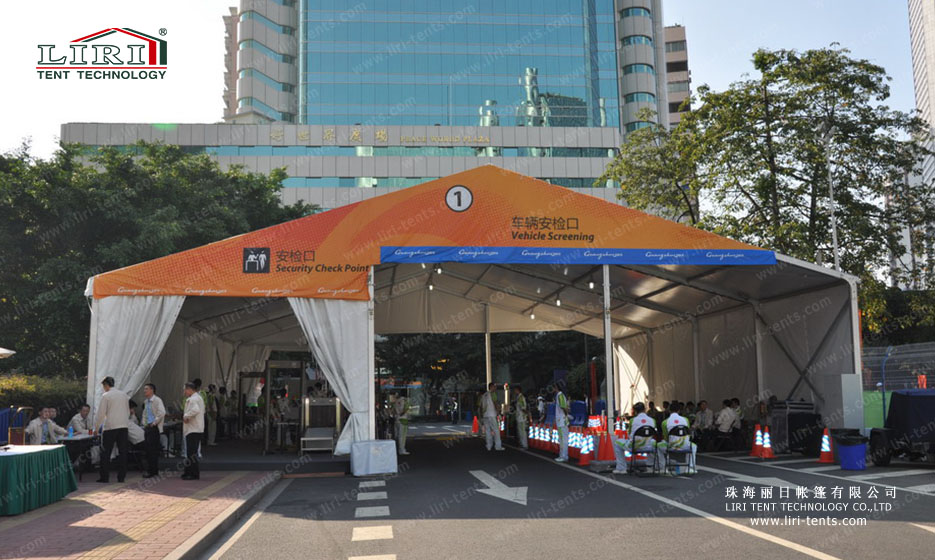

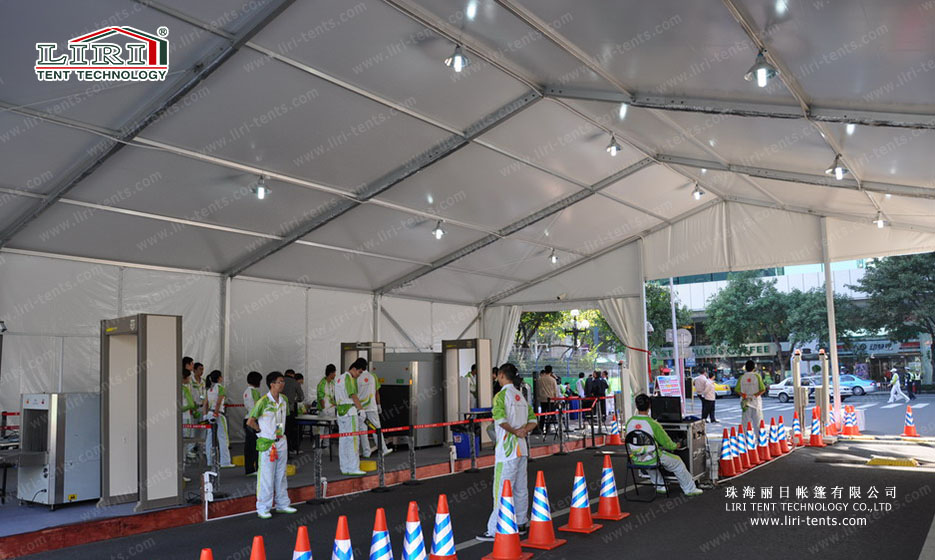

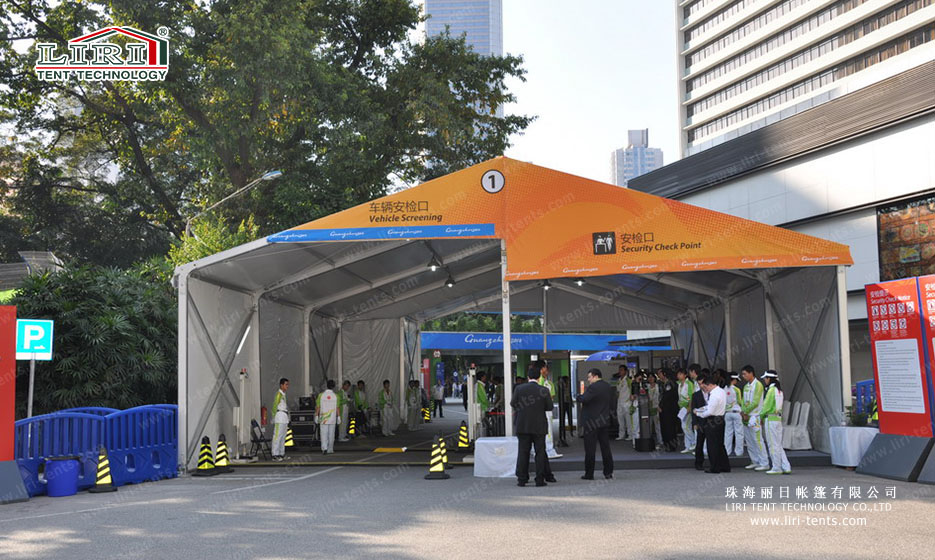

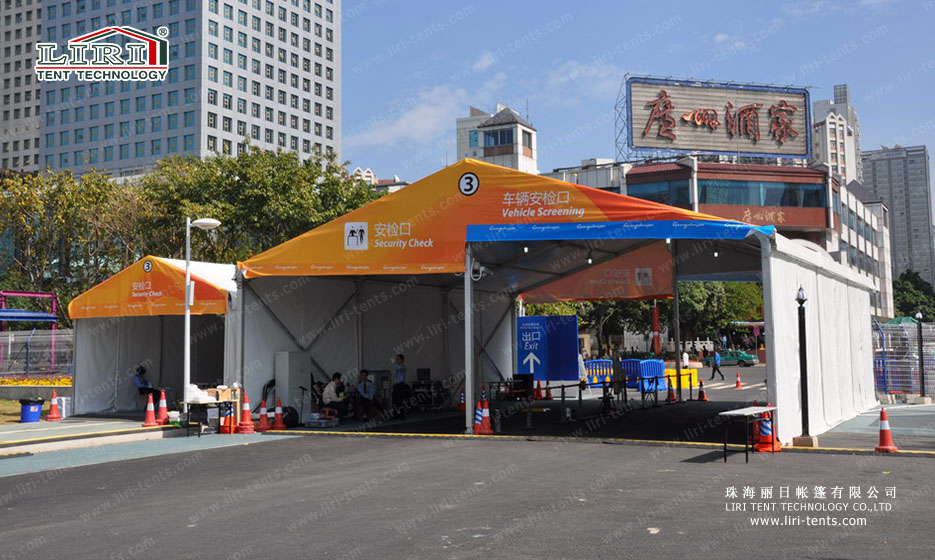

Liri tent divides security checkpoint tents into two main purposes, namely, personal security and vehicle security. There are two series of security checkpoint tents, which side heights are 2.6m and 3.3m, and its span width is available in different sizes depending on the requirements of the customers’ terrain. Security screening machines and other security equipment can be placed in the tent. The security checkpoint tents are widely used in various large-scale outdoor exhibitions, sporting events, and other outdoor activities.

Zhuhai Liri Tent Technology Co., Ltd, specialized in the manufacturing and leasing all kinds of tents, has successfully provided large quantities of security checkpoint tents for the 2010 Guangzhou Asian Games, the 2011 Shenzhen Universiade Games, 2013 China Open, and the 2015 Beijing world championships.

Checkpoint Tent Series Specifications
Ancho de vanoAltura del aleroAltura de la crestaDistancia entre módulosPerfil principal
8 m3,3 m4,53 m5 m152 x 119 x 3,5 mm (4 canales)
10 m3,3 m4,85 m5 m152 x 119 x 3,5 mm (4 canales)
10 m4 m5,55 m5 m152 x 119 x 3,5 mm (4 canales)
12 m3,3 m5,16 m5 m152 x 119 x 3,5 mm (4 canales)
12,5 m3,3 m5,29 m5 m152 x 119 x 3,5 mm (4 canales)
15 m3,3 m5,62 m5 m152 x 119 x 3,5 mm (4 canales)
15 m4 m6,32 m5 m152 x 119 x 3,5 mm (4 canales)
16 m3,3 m5,72 m5 m152 x 119 x 3,5 mm (4 canales)
18 m3,3 m6,01 m5 m152 x 119 x 3,5 mm (4 canales)
Características

Perfiles de la estructura: aluminio extruido 6061/T6 (15HW) de alta resistencia

Revestimiento de tejido: tejido de poliéster de alta calidad con doble recubrimiento de PVC; impermeable 100%; ignífugo según las normas DIN 4102 B1, M2 y CFM; resistente a los rayos UV, resistente al desgarro, con capacidad de autolimpieza, etc.

Conectores: acero resistente galvanizado en caliente

Rango de temperatura admisible: de -30 °C a +70 °C

Resistencia al viento: máx. 100 km/h

Carga de nieve: 75 kg/m² (la nieve no se acumula con un techo de gran pendiente)

Fácil de montar y desmontar

Sin postes interiores, 100 % del espacio interior disponible
