Carpas de exposición para el Airshow China 2021

2021 Zhuhai Airshow

Acerca del proyecto

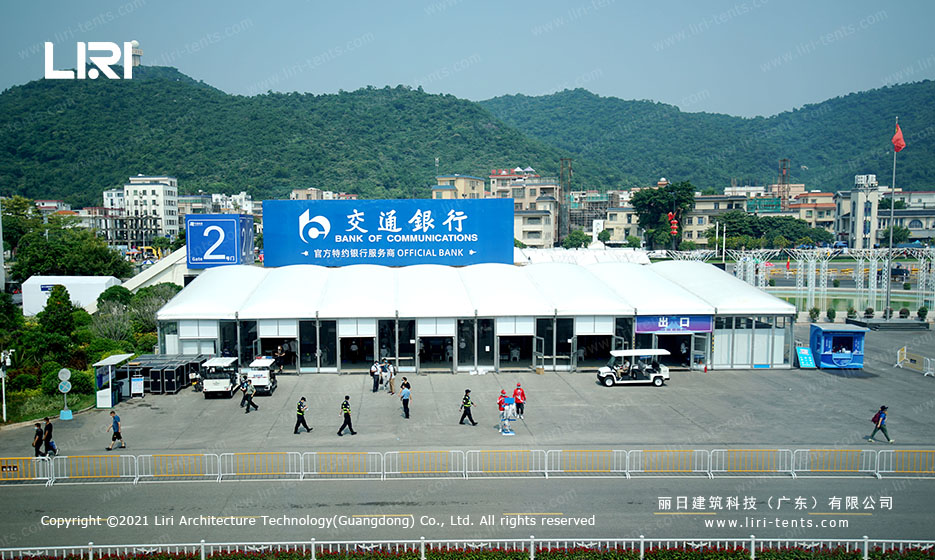

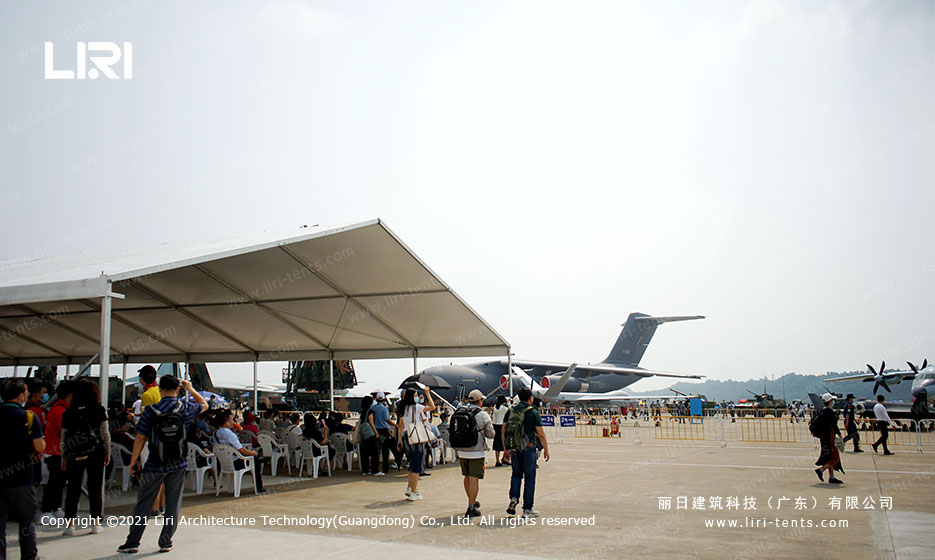

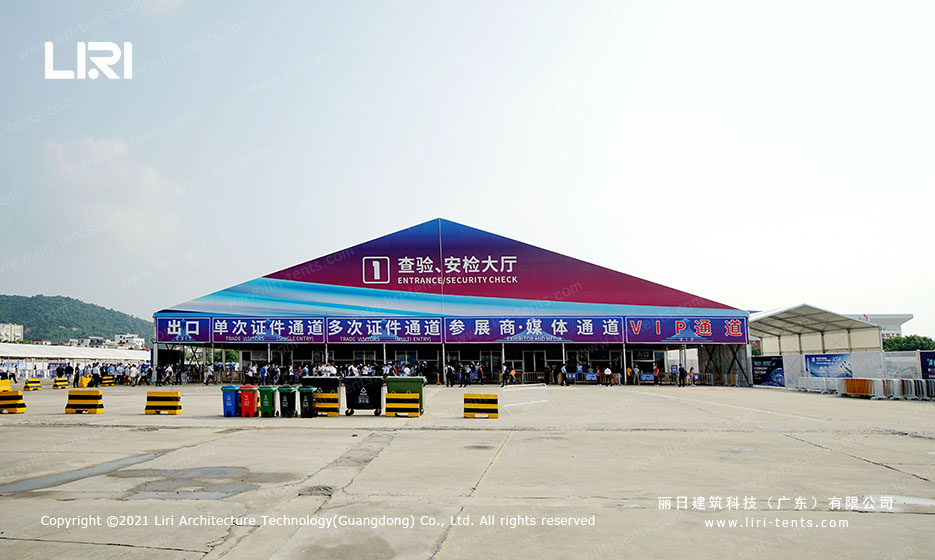

The 13th China International Aviation & Aerospace Exhibition 2021 (Zhuhai Airshow ) was held from September 28th to October 3rd, which is the largest airshow in China. LIRI Architecture, as for the local enterprise in Zhuhai, has been cooperated with China International Aviation & Aerospace Exhibition for 20 years and made cooperation again this year. LIRI provided Zhuhai Airshow with numerous temporary exhibition halls, these halls are bright and spacious inside with multifunctional areas.

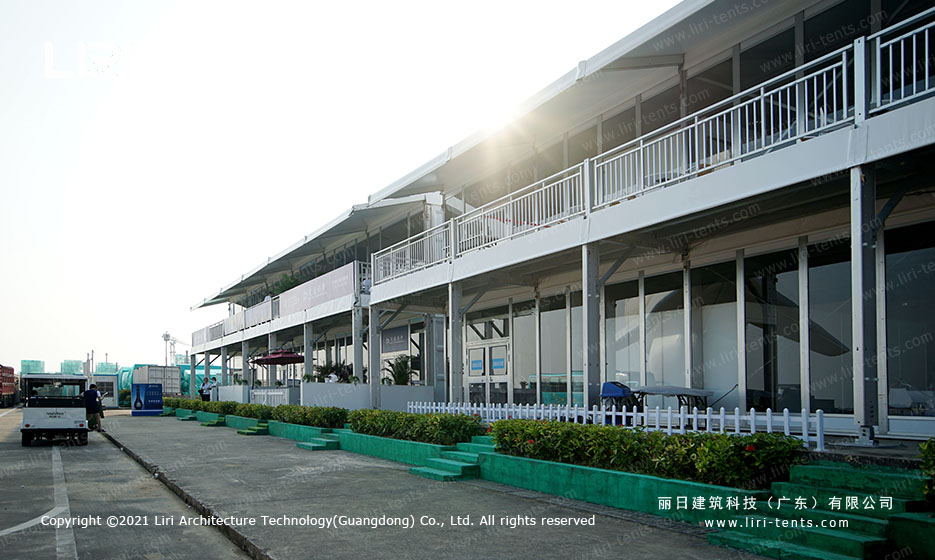

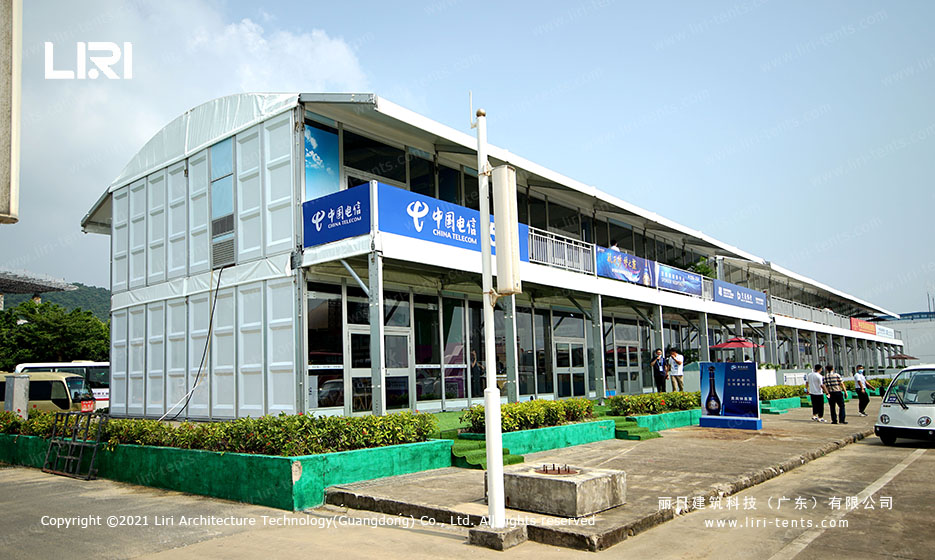

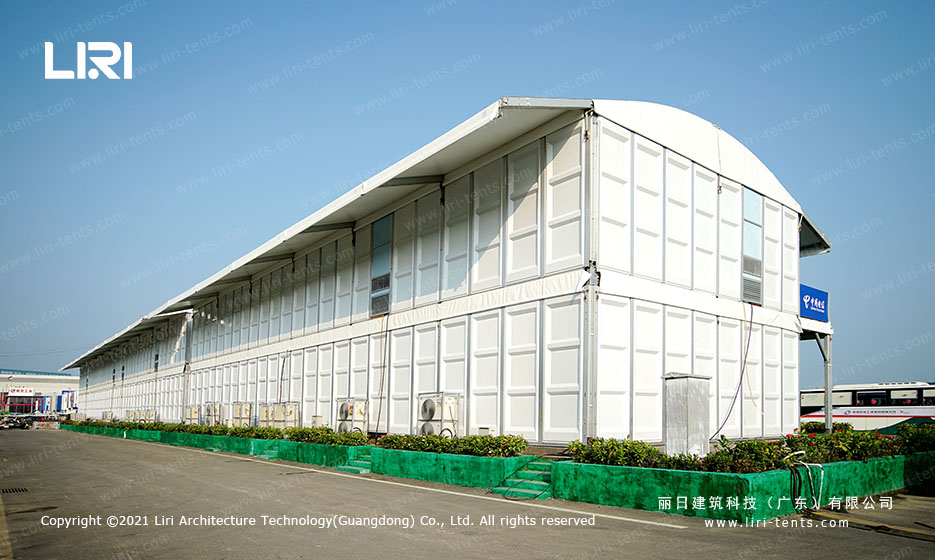

Arcum double decker tent, one of the temporary tents be used in Zhuhai airshow, whose design is double decker tent structure, people can enjoy the view of the whole site by standing on the balcony. Besides, as a VIP lounge, people can enjoy both taking a rest and enjoying the scenery in the meantime. These temporary exhibitions from LIRI Architecture covered a total area of 35,000 square meters. In this airshow, LIRI provided various solutions that almost match each scene promptly.

The Zhuhai Airshow, in addition to expanding the scale, let people deeply feel the strength of our motherland and the future of science and technology. Spy drone, Unmanned ship, Tianwen 1 Mars Probe, Change 5 Lunar Probe, BeiDou-3 Navigation Satellite System, showed in this exhibition, were all amazed us. All of them in this show are integrated into the four-word, “Chinese Power”.

Especificaciones de la serie de carpas para exposiciones
Ancho de vanoAltura del aleroAltura de la crestaDistancia entre módulosPerfil principal
10 m8 m8,54 m5 m300 x 120 x 5 mm (4 canales)
15 m8 m8,89 m5 m300 x 120 x 5 mm (4 canales)
20 m8 m9,2 m5 m300 x 120 x 5 mm (4 canales)
25 m8 m9,5 m5 m300 x 120 x 5 mm (4 canales)
30 m8 m9,8 m5 m300 x 120 x 5 mm (4 canales)
40 m8 m10 m5 m300 x 120 x 5 mm (4 canales)
Características

Perfiles de la estructura: aluminio extruido 6061/T6 (15HW) de alta resistencia

Funda de tela: tejido de poliéster de alta calidad con doble recubrimiento de PVC; impermeable 100%; ignífugo según las normas DIN 4102 B1, M2 y CFM; resistente a los rayos UV, resistente al desgarro, con capacidad de autolimpieza, etc.

Conectores: acero resistente galvanizado en caliente

Rango de temperatura admisible: de -30 °C a +70 °C

Resistencia al viento: máx. 100 km/h

Carga de nieve: 75 kg/m² (la nieve no se acumula con un techo de gran pendiente)

Fácil de montar y desmontar

Sin postes interiores, 100 % del espacio interior disponible
