Carpa para ferias comerciales de 40 m a 60 m

Big Outdoor Exhibition Tent

Acerca del proyecto

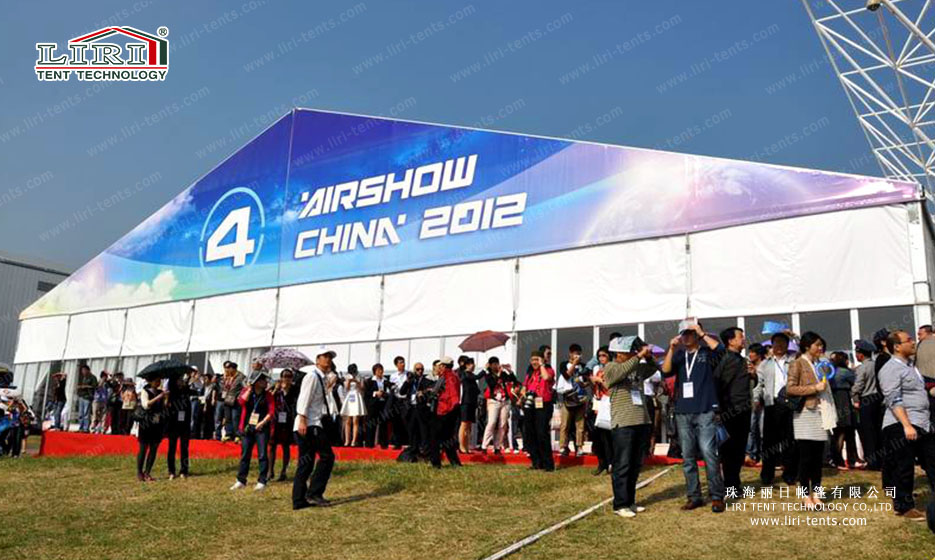

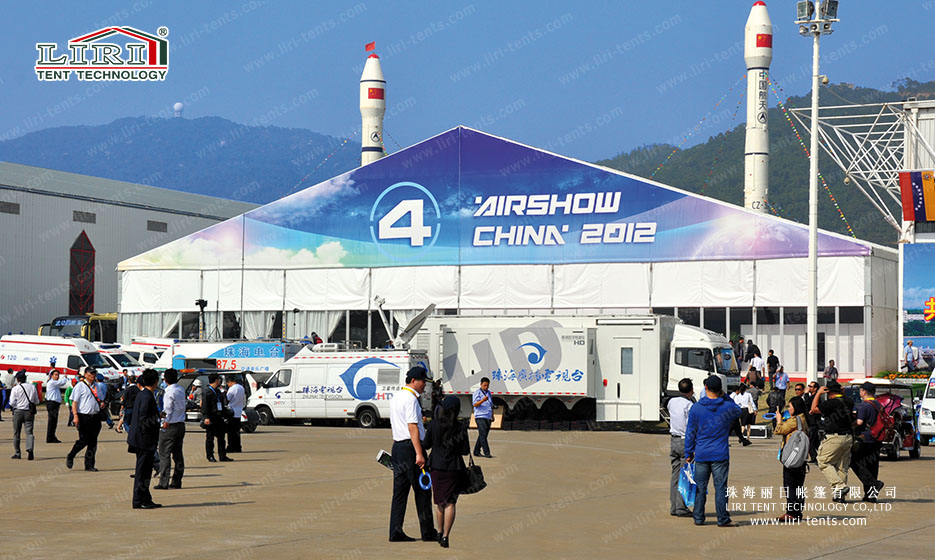

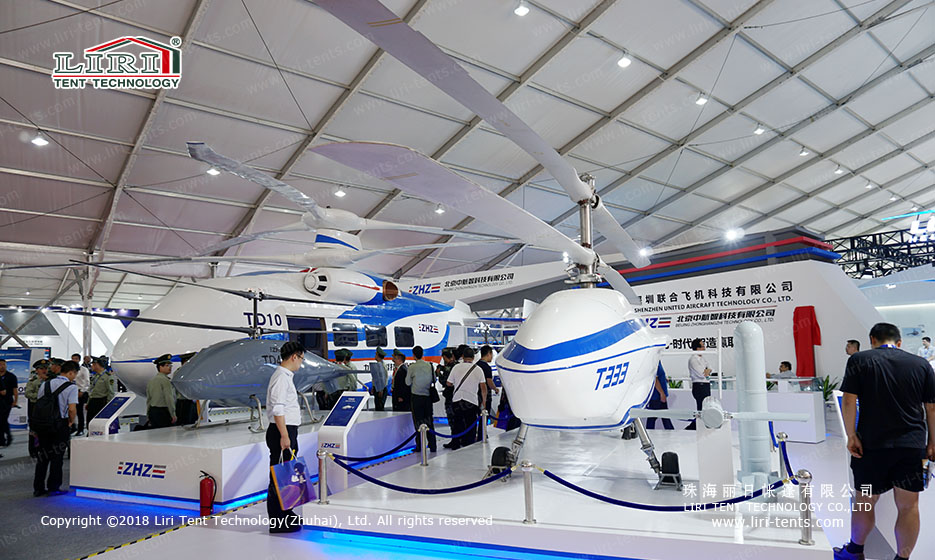

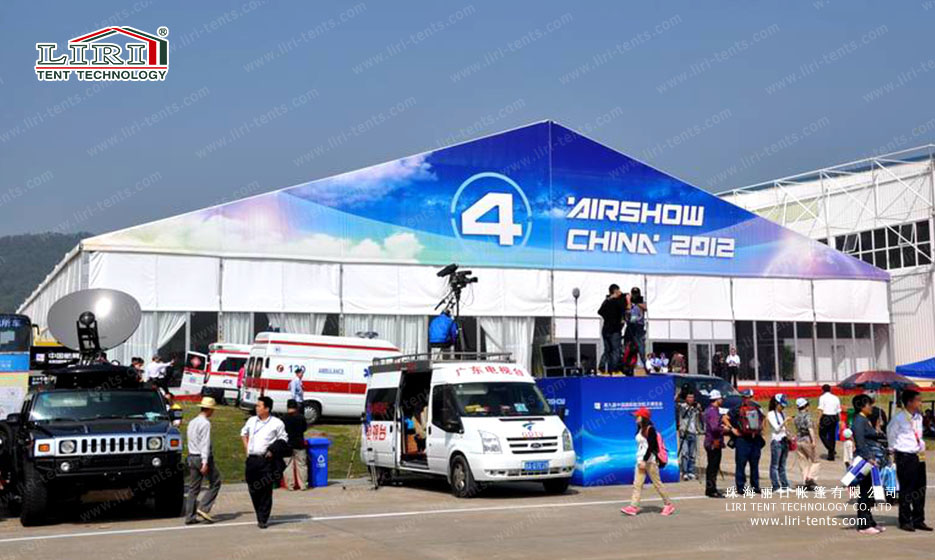

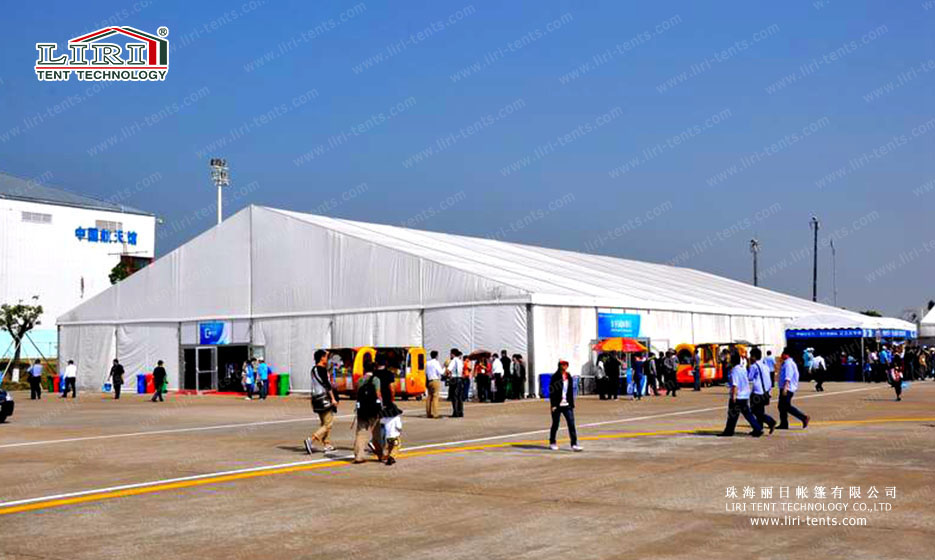

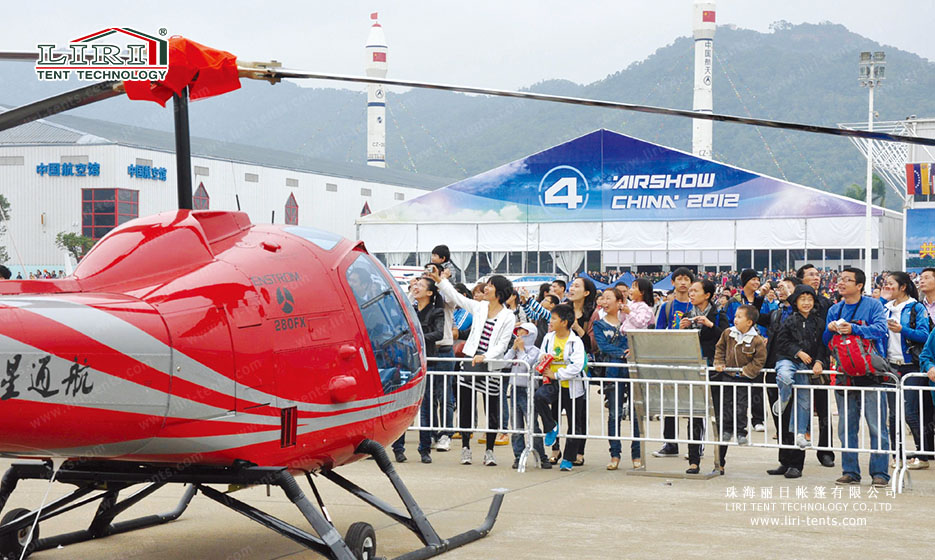

The 9th Air Show China took place in Zhuhai. Last year’s air show used temporary tents from Zhuhai Liri Tent. The air trade show tent was about 200,000 square meters. The exhibition tent’s standard sizes included 40mx30mx25mx20mx10m double pitch roof and a high peak tent.

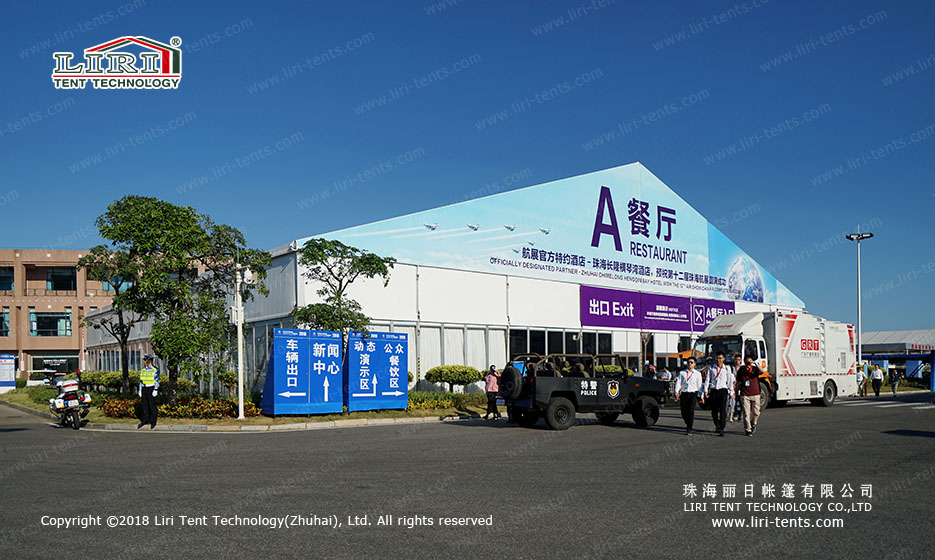

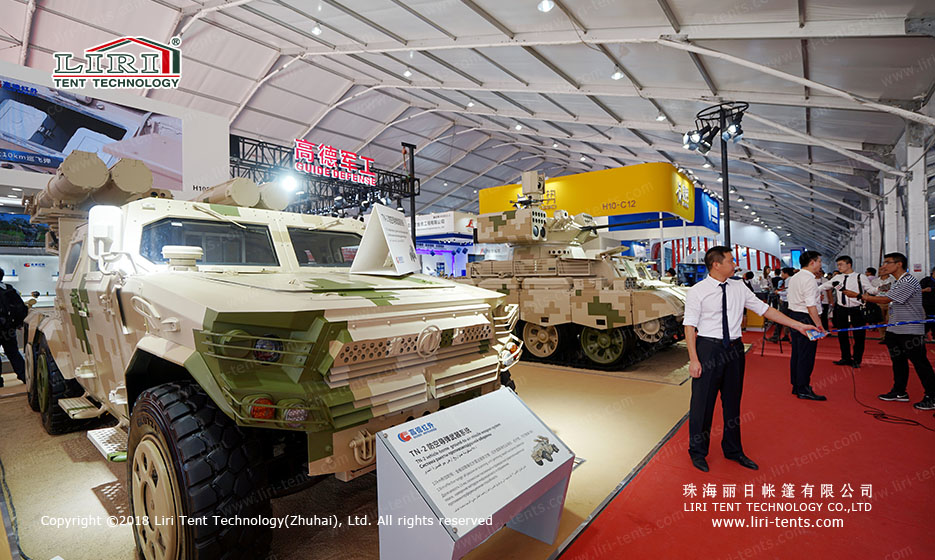

The air trade show tent main purpose included four tents for military weapons, five for temporary offices, and dining hall a and b. It also included a BTB discussion office, selling ticket booth, checking point area, and also big tents with a standard size of 40m and side height of 6m. The tent included illuminated lights, cassette wood flooring, and lining curtains. Zhuhai Liri Tent was the exclusive temporary tent supplier five times for the show and has shown that it is a trustworthy company.

Especificaciones de la serie de carpas para exposiciones
Ancho de vanoAltura del aleroAltura de la crestaDistancia entre módulosPerfil principal
40 m5 m11,5 m5 m400x120x6/7mm (4 - channel)
50 m5 m13m5 m400x120x6/7mm (4 - channel)
55m5 m14m5 m400x120x6/7mm (4 - channel)
60 m5 m14.6m5 m400x120x6/7mm (4 - channel)
Características

Perfiles de la estructura: aluminio extruido 6061/T6 (15HW) de alta resistencia

Revestimiento de tejido: tejido de poliéster de alta calidad con doble recubrimiento de PVC; impermeable 100%; ignífugo según las normas DIN 4102 B1, M2 y CFM; resistente a los rayos UV, resistente al desgarro, con capacidad de autolimpieza, etc.

Conectores: acero resistente galvanizado en caliente

Rango de temperatura admisible: de -30 °C a +70 °C

Resistencia al viento: máx. 100 km/h

Carga de nieve: 75 kg/m² (la nieve no se acumula con un techo de gran pendiente)

Fácil de montar y desmontar

Sin postes interiores, 100 % del espacio interior disponible
